industrial gigabit POE media converter
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pcs/day |
| Supply Ability: | 5000pcs around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Yantian |
Overview
POE power fiber transceiver, 10/100 / 1000M Ethernet power supply POE (PSE) fiber transceiver.

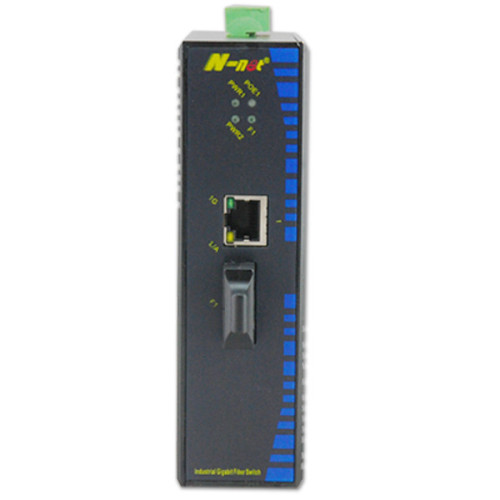

NT-IN311 Industrial Gigabit POE Media Converter series are 10/100/1000Base-TX to 1000Base-SX/LX Industrial Gigabit Fiber Converter.
Main features: 10/100 / 1000Base-TX UTP 1000Base-FX fiber media conversion. PoE PSE compatible with IEEE802.3af standard.
It will extend transmission distance of network up to 100Km via fiber port, and the UTP port can operation at 10M, 100M and 1000M application.
Main features: 10/100 / 1000Base-TX UTP 1000Base-FX fiber media conversion. PoE PSE compatible with IEEE802.3af standard.

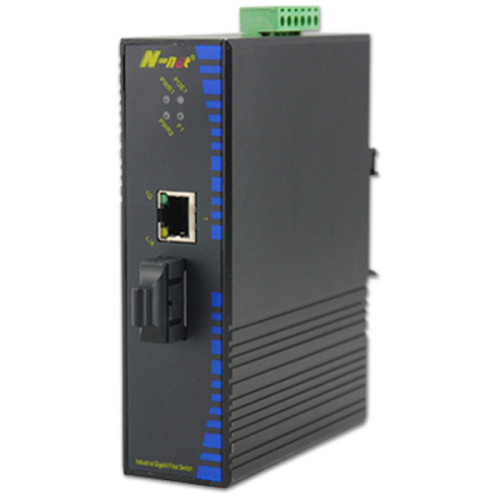

NT-IN311 Industrial Gigabit POE Media Converter series is packaged in a special compact IP40 metal case that allows either DIN rail or panel mounting for easy installation at control cabinet.
Chinese name POE power fiber transceiver main features overcurrent protection, etc.
It accepts an integrated power supply with a wide range of voltages for worldwide operation.
The FR220 series is a 1000BASE-FX 10/100 / 1000Base-TX (can also be forced to 100BASE-FX) media converter, which allows easy connection of two types of network segments.
It can also be equipped with dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
The AC / DC-powered PoE media converter that complies with IEEE802.3af standard is a power supply equipment (PSE), which combines optical fiber connection (or other voltage) power supply and 48V transferred data to provide power supply that complies with IEEE802.3af power supply equipment ( PD), CAT5 UTP cable (cable length up to 100 meters / 330feets).
NT-IN311 Industrial Media Converter series complied with IEEE 802.3at High Power over Ethernet technology (optional). It is downward compatible with 802.3af PoE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With Data and Power over Ethernet from one unit, NT-IN311 Industrial Fiber Switch series shall reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
Feature
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Standard:IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE802.3x Flow Control, IEEE802.3at PSE
- 10/100/1000Base-TX can automatically identify the direct-line(MDI) and cross-line(MDIX), is compatible with Various cards, switches, HUB and other Ethernet devices
- It applies store-and-forward mechanism to avoid packet loss and error frames
- Support wire-speed transmission and full-duplex flow control / half-duplex back pressure mode
- Jumbo frames support a maximum of 1536 bytes
- 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
- -40 to 80 ℃ operating temperature to meet a variety of complex environments
- IP40 protection standard for housing
- Power port and Ethernet port supports ESD protection and EFT protection
- DIN rail and panel mounting for easy installation.
- Support Dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
- Support POE power supply up to 25.5W(optional)
- Support SFP fiber module
Specifications
|
Parameter |
Specifications |
|
Design Level |
Industrial grade IP40 design standards |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE802.3x Flow Control, IEEE802.3at PSE |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:500km Single fiber single mode:20/40/60/80km Dual-fiber single mode:20/40/60/80/100km Category-5 twisted pairs:100m |
|
Port |
One RJ45 port: Connecting STP/UTP category-5/6 twisted pairs, EIA568A/B One optical port: Multi-mode :SC/FC/LC(50/125, 62.5/125μm) Single mode : SC/FC/LC (8.3/125, 8.7/125, 9/125 or 10/125μm) |
|
Conversion mechanism |
Store and Forward |
|
MAC address table |
1K |
|
Buffer space |
Built in 512Kb RAM for data buffer |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<10-9 |
|
MTBF |
50,000 hours |
|
LED indicator |
Power Supply : PWR 1 , PWR 2 UTP Port: POE, L/A ,1000 Fiber Port: SD |
|
Power supply |
Power Input Range: 12 ~ 48VDC/24VAC , 6-PIN Terminals, Redundant dual power |
|
Power consumption |
<4W (without PSE function) |
|
Operating temperature |
-40~80ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40~85ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
140mm (W)×110mm (D)×40 mm (H) |

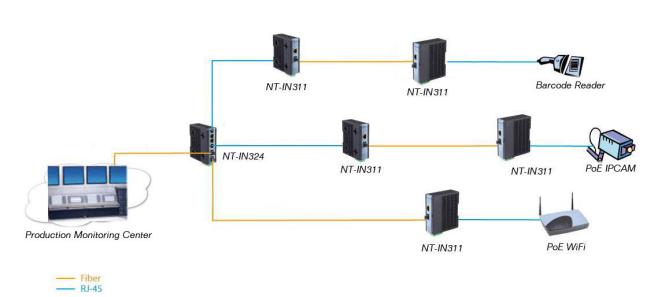

Application
