N-net 24 SFP Ports Managed Ethernet Switch

Therefore, the practice of many enterprises is that the backbone network is optical fiber, and the transmission medium of the internal LAN is generally copper wire and twisted pair.

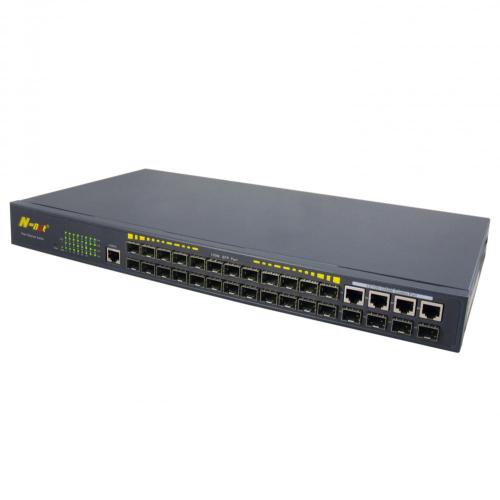

NT-35M24F4GC Ethernet switch is a high-performance, network management optional L2 managed switch.

But how to connect the LAN to the optical fiber backbone network? This requires conversion between different ports, different linear shapes, and different optical fibers to ensure link quality.
Based on industrial network dedicated switching chip as the core, the main application is to provide support for Ethernet two layer exchange for the construction of the campus network, or with the special software (optional, authentication and billing) for Ethernet access or cell broadband aggregation equipment.

Optical fiber transceiver is an Ethernet transmission media conversion unit that exchanges short-distance twisted pair electrical signals and long-distance optical signals. It is also called a photoelectric converter or fiber converter in many places. ).

Support 24 100Base-FX SFP interface and 4 Gigabit uplink COMBO port (fiber port and Ethernet port is optional).

To put it simply, one end of the single-mode optical fiber transceiver is connected to the optical transmission system, and the other end (user end) comes out with a 10 / 100M Ethernet interface. Its main principle is to achieve communication through photoelectric coupling, and there is nothing to the signal encoding format. Variety.

This 24 ports fiber switch can be applied to the campus network, enterprise network and residential communities, Internet broadband access, small office network, network video surveillance application environment, complete the long-distance multi user access needs through a pair or an optical fiber can be simplified, the access layer of the network structure, saving equipment investment, will greatly shorten the network the cycle and reduce the construction cost and maintenance cost, optical fiber transmission cost-effective access solutions.

Managed Fast Ethernet Switch Features

1. 24x 10/100Mbps downlink optical fiber Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports and 2x1000Mbps uplink SFP Ports or 4x 1000M Gigabit Ethernet COMBO ports
2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z
3. compatible with various Ethernet devices
4. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMP Snooping,
5. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
6. Store-and-forward mechanism is employed to avoid packet loss and error frames
7. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
8. Support IP/Port/Mac binding.
9. Jumbo frames support a maximum of 9.6K kilobtyes
10. Support enhanced management through WEB, CLI, SSH, SNMP.
11. Built-in 1U rack power supply series, easy installation

Instruction

1. Front board have 33 ports, Provide 24x 10/100Mbps downlink fiber Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports or 2x 1000Mbps uplink SFP Ports; or 4x 1000M Gigabit Ethernet COMBO ports,and 1x

2. LED Indicator State:

Power : 1 green light indicates that the power normal work;

Ethernet : 28 green lights indicate that the Ethernet Link and Act

Ethernet : 28 green lights indicate that the Ethernet speed.

Installation step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

1. Fiber Switch                        1PCS

2. User Manual                        1PCS

◆ Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆ Use 24 network cables to connect 24 industrial switch with Ethernet switch's 1~24 fiber port;

◆ Use network cable to connect Ethernet switch`s UPLINK port with NVR or Other Device;

◆ Connect Ethernet switch with power adapter;

◆ Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆ Make sure every network device has power supply and work normally.

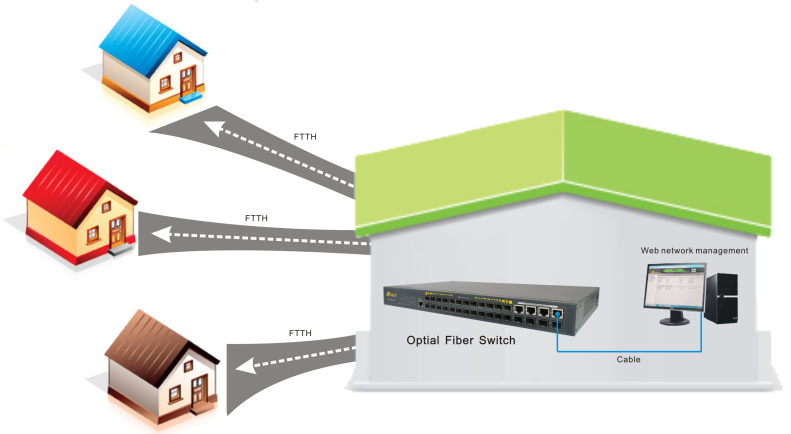

Managed 10/100M Ethernet Switch Application

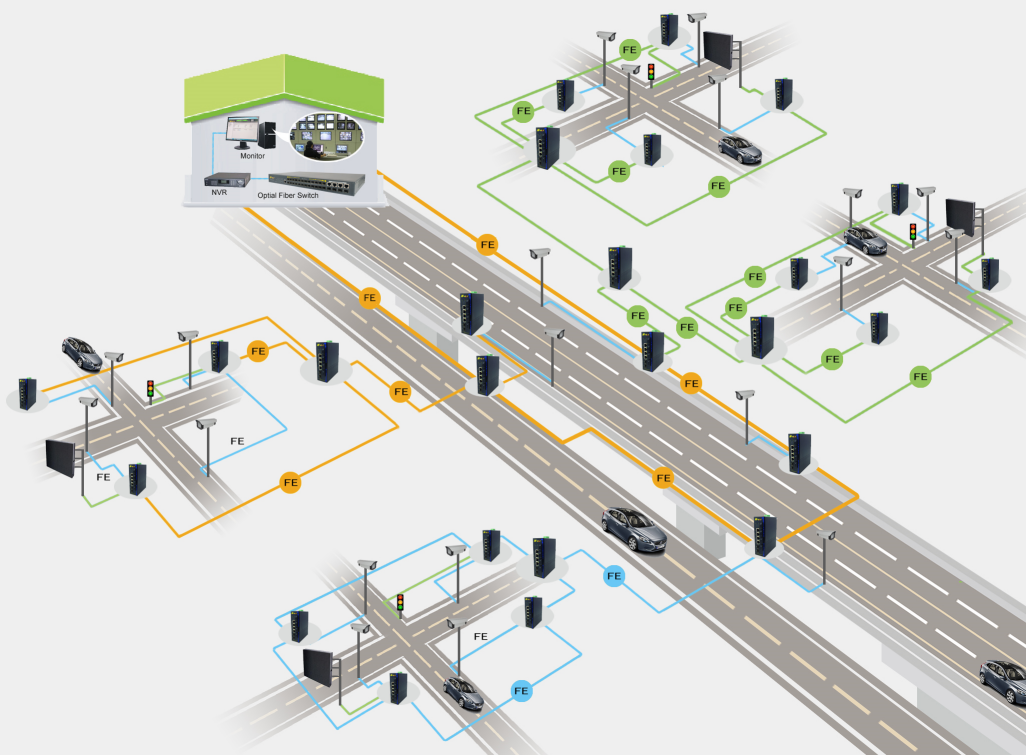

Application 2
