managed gigabit ethernet switch

Overview

Optical fiber transceivers have the advantages of providing ultra-low latency data transmission, completely transparent to network protocols, mostly using dedicated ASIC chips to achieve data line-speed forwarding, devices using 1 + 1 power supply design, etc.,

The NT-MG1500 offers wire-speed packet transfer performance with 12Gbps non-blocking switch fabric, 8k MAC Address table and 802.3x Full-Duplex flow control.

supporting ultra-wide power supply voltage, Realize power protection and automatic switching.
NT-MG1500 can be programmed for basic Switch management functions such as per port speed duplex settings, Port Trunking, VLAN, Port Mirroring, Rapid Spanning Tree, etc.

At the same time, it supports an ultra-wide operating temperature range and a complete transmission distance of 0 to 120 kilometers.

Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control, to enhance bandwidth utilization.

Single-mode transceivers can cover a range from 20 kilometers to 120 kilometers. It should be pointed out that due to the different transmission distances, the transmission power, receiving sensitivity and use wavelength of the optical fiber transceiver itself will also be different.

NT-MG1500supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. These features provide a cost-effective way to manage the device from the Internet whenever you are working or at home.

For example, the transmission power of a 20 km optical fiber transceiver is generally between -15 and -7dB, and the receiving sensitivity is -30dB, using a wavelength of 1310nm; while the transmission power of a 120km optical fiber transceiver is usually between -5 and 0dB, the receiving sensitivity For -38dB, use a wavelength of 1550nm.

Key Feature

Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T,

IEEE 802.3z 1000Base-SX/LX Ethernet standard

5-Port 10/100/1000Mbps Gigabit Ethernet ports with 1-port fiber port

Auto-MDI/MDI-X detection on each RJ-45 port supports CSMA/CD protocol

Prevents packet loss with back pressure (Half-Duplex) and 802.3x PAUSE frame flow control(Full-Duplex)

8K MAC address table, automatic source address learning and ageing

12Gbps switch fabric, non-blocking switch architecture

9K Jumbo Frame supports at all speed (10/100/1000Mbps)

Supports Port-Based and 802.1Q VLAN function, up to 64 VLAN groups

Supports IEEE 802.1w Rapid-Spanning Tree protocol(RSTP)

Link Aggregation supports static mode and LACP (IEEE 802.3ad) - up to 4 trunk groups, Each trunk is maximum up to 6 ports

IGMP Snooping for multicast filtering, supports v1 and v2

Support DHCP option 60 and option 82

Multicast and Broadcast Storm Control as well as Flooding Control

Port Mirroring support for dedicated port monitoring

802.1X Port-Base access control, RADIUS Server Authentication

Static MAC Address assigns destination MAC address at specifc port

Remote Web management interface

Firmware upgrade through Web interface

Cable Diagnostics technology

Supports SNMPv1 with RFC-1213/1573-Interface group and RMON Group 1 ( Statistics) SNMP Trap

Specification

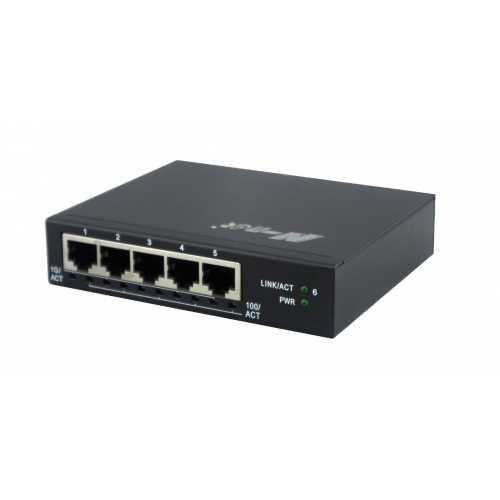

6-Port Web Smart Gigabit Switch with 1 Fiber Port

NT-MG1500 Series

Applications

FTTx Switch

With 1gigabit fiber interfaces, to build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTB (Fiber to the Building) for enterprises, the various distances of fiber port are optional for customers. For security and applications, the 5 Gigabit ports can be configured with VLAN settings and connect to different units, offices, buildings, houses and departments. And NT-MG1500 is wide application in Europe FTTH market.

Ordering Information

NT-MG1500      6-Port 10/100/1000Mbps Web Smart Gigabit Ethernet Switch
