Overview

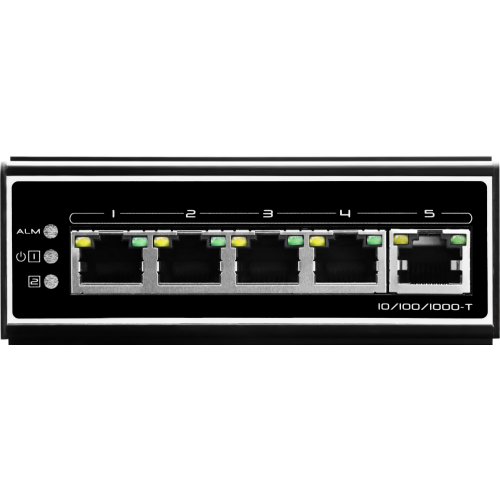

The NIE605G is a 5-port industrial switch that supports up to 5 *10/100/1000M RJ45 ports；
It supports relay alarm for power off, network broken.
It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection.
It supports Din-rail installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Features
With 5*10/100/1000M RJ45 ports;
Supports relay alarm for power off, network broken;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -30℃～65℃;
Supports Din-rail installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Specification
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 12~60V |
|
Consumption |
Self consumption<5W |
|
Downlink ports |
Ports 1: 10/100/1000Base-T RJ45 |
|
Uplink ports |
Ports 2: 1000Base-X SC |
|
Relay alarm |
1 channel relay alarm output for power off, ports link down
|
|
Cable and distance |
Use cat5e/6,100m max |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
10 Gbps |
|
Though put |
7.4 Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 2 *red ;
Ethernet ports 1~5: Green LEDs and yellow LEDs indicate Link/Act
|
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-30℃~65℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
101mm×65 mm×36mm |
|
Material |
Metal |
|
Colour |
Black |
|
Net-weight |
350g |

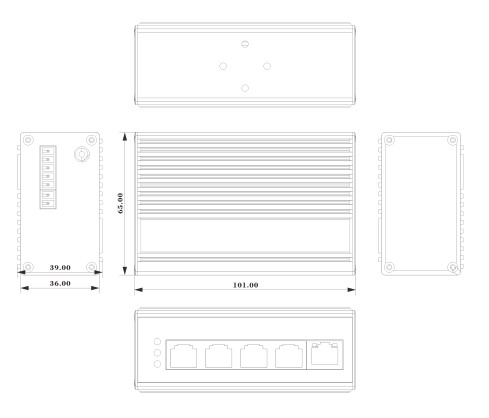

Dimensions
Order Information
Model
Description
NIE605G
With 5*10/100/1000M RJ45 ports;
2*DC12-60V power supply(Power adaptor buy extra);
Supports relay alarm function for power off, network broken;
-30~65℃.
