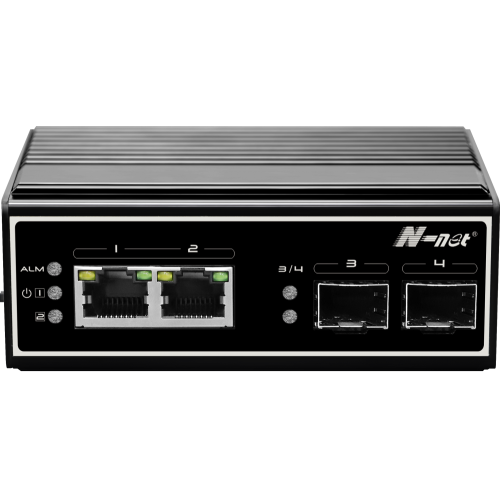

4 ports Industrial full gigabit switch
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- China, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE, FCC |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | China,Shenzhen |
Overview
The NIE6022G is a 4-port industrial full gigabit switch that supports up to 2 *10/100/100M downlink ports and 2*1000M SFP slots.
Fiber ports provides 2 modes through the dip switch, 100M mode and 1000M mode to adapt to variety needs.
It supports relay alarm for power off, network broken.
It has the characteristics of reliable work, strong and durable, high cost performance and so on.
Supports desktop installation, which is reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Features
With 2*10/100/1000M downlink ports and 2*1000M SFP ports;
Fiber ports provides 2 modes through the dip switch, 100M mode and 1000M mode to adapt to variety needs;
Supports relay alarm for power off, network broken;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～75℃;
Supports desktop installation, which is reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 12~60V |
|
Consumption |
Self consumption<5W |
|
Downlink ports |
Ports 1~2 10/100/1000Base-T RJ45 |
|
Uplink ports |
Ports 3~4 supports 2 modes of 100Base-TX and 1000Base-X |
|
Working mode of fiber ports |
It can be selected 100M work mode and 1000M work mode by dip switch |
|
Relay alarm |
1 channel relay alarm output for power off, ports link down |
|
Cable and distance |
Use cat5e/6,100m max |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
8 Gbps |
|
Though put |
5.95 Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 1 *red ; Uplink3~4: Green LEDs indicate Link/Act Downlink 1~2: Yellow LED and green LEDs indicate Link/Act |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
101mm×65 mm×36mm |
|
Material |
Metal |
|
Colour |
Black |
|
Net-weight |
300g |
Panel diagram
Application
Dimensions
Order Information
Model
Description
NIE6022G
With 2*10/100/1000M downlink ports and 2*1000M SFP ports;
2*DC12-60V power supply(Power adaptor buy extra);
Fiber ports provides 2 modes through the dip switch, 100M mode and 1000M mode to adapt to variety needs;
Supports relay alarm function for power off, network broken.
