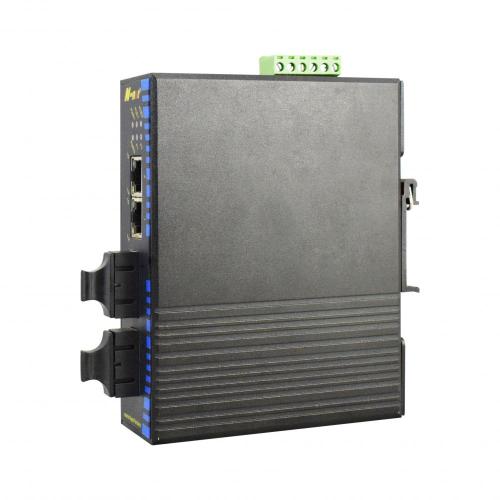

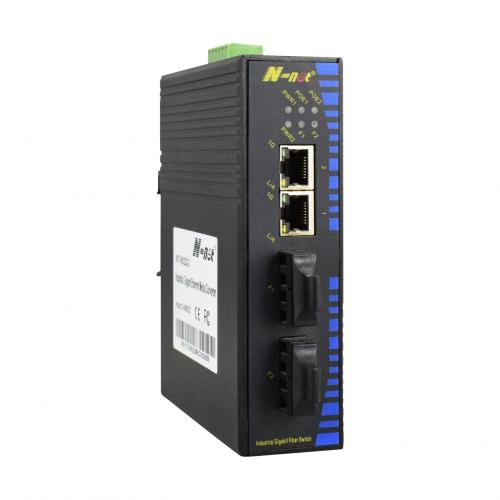

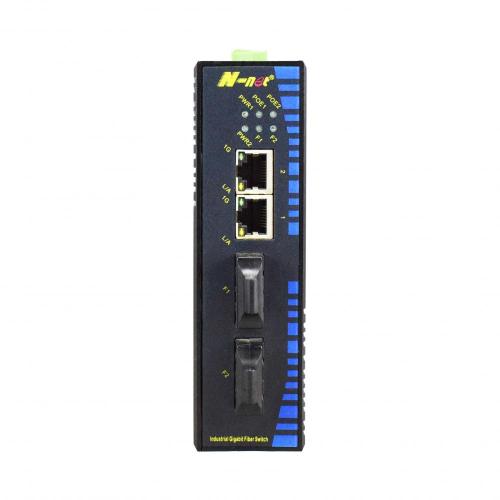

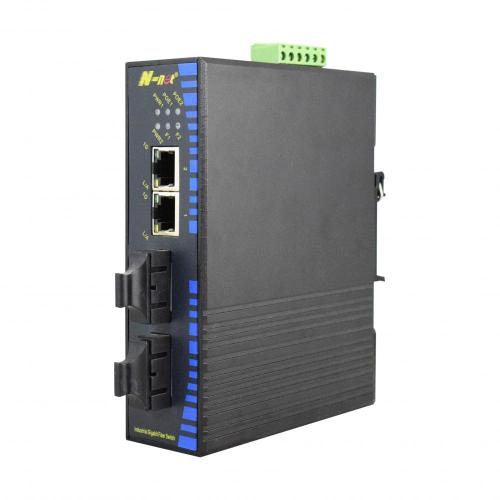

Industrial Gigabit Ethernet Switch with 2 Fiber Redundant

Overview

· The electrical port can adapt to the straight-through / crossover connection;

The N-net NT-IN322-2 is an Industrial Gigabit Ethernet Switch with 2 Fiber Redundant equipped with 2x 10/100Base-TX and 2x 100Base-FX with fiber redundant and dip function, · With full duplex / half duplex working mode;

after turning on the dip switch, while one fiber port fails for accident,

· Support IEEE802.3X full-duplex flow control and half-duplex back pressure flow control;

it can automatically fall over to another fiber port to proceed transmission,

· Support the function of preventing broadcast storm;
· Supports up to 1916 Bytes data frame (optional);
· Built-in lightning protection circuit can greatly reduce the damage caused by lightning induction;

so with 2 fiber port, it can easily achieve redundancy for your network.

Features

1. Dual fiber port redundancy available with DIP switch

2. Built-in efficient switching core to implement flow control and reduce broadcast packets

3. Protocol supported: IEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE802.3x Flow Control, IEEE802.3at PSE

4. 10/100/1000Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices

5. Take store-and-forward mechanism to avoid packet loss and error frames

6. Provide four independent 10M/100Mbps/1000Mbps self-adaptive twisted pair ports; realize Ethernet port redundancy and multiple users access.

7. This Industrial Gigabit Ethernet Switch with 2 Fiber Redundant Support up to 1536 bytes packet.

8. Support full-duplex flow control / half-duplex back pressure mode

9. 12V--48V DC or 24V AC power supply input, redundant power and reverse polarity protection

10. -40 to 80℃ operating temperature to meet a variety of complex environment

11. IP40 standard protection housing.

12 Supports Easy installation, DIN rail or panel mountable.

13. Dual fiber multi mode, single mode and WDM single mode fiber compatible.

14. Support POE power supply up to 25.5W (optional)

15. 12 Gbps back plane bandwidth, 1 k MAC address automatic learning and 512kb internal cache for data buffer

Specification
