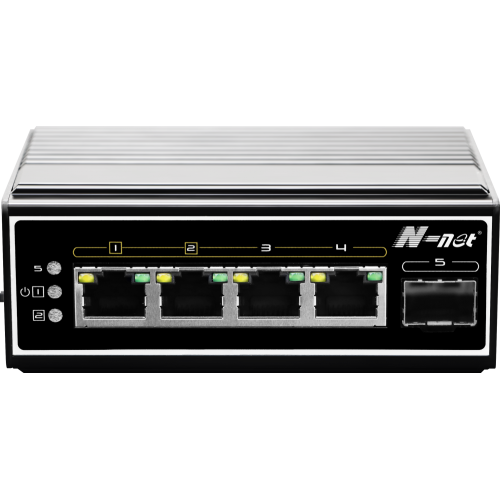

5 ports industrial full gigabit POE switch
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, EXW, FCA
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- China, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,EXW,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | China,Shenzhen |
Overview
The NIE6041SPG is a 5-port industrial full gigabit PoE switch that supports up to 2*10/100/1000M 90W PoE ports, 2*10/100/1000M 30W PoE ports and 1*1000M SFP slot; 4*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.
NIE6041SPG has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection;
NIE6041SPG supports Din-rail installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Features
With 2*10/100/1000M 90W PoE ports, 2*10/100/1000M 30W PoE ports and 1*1000M SFP slot;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -30℃～65℃;
Supports Din-rail installation, reliable and durable. It can be used in security network video monitoring, network engineering and other occasions.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 48~57V |
|
Consumption |
Self consumption<5W |
|
Downlink ports |
Ports 1~2 10/100/1000Base-T 90W PoE RJ45(IEEE 802.3bt) Ports 3~4 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
|
|
Uplink ports |
Port 5 1000Base-X SFP slot
|
|
Cable and distance |
Use cat5e/6,100m max |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
10 Gbps |
|
Though put |
7.44 Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 2 *red ; Uplink2: Green LEDs indicate Link/Act Downlink 1: Yellow LED indicate PoE and green LEDs indicate Link/Act
|
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
|
|
Working temperature |
-30℃~65℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
99 mm×65 mm×50mm
|
|
Material |
Aluminium alloy |
|
Colour |
Black |
|
Net-weight |
350g |

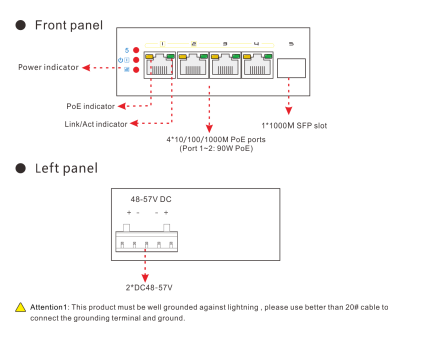

Panel diagram

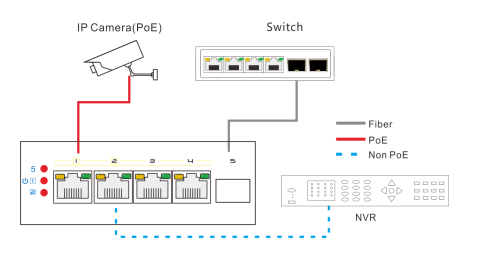

Application
Dimensions
Order information
Model
Description
NIE6041SPG
Ports 1~2: 2*10/100/1000M 90W PoE RJ45 (IEEE 802.3bt)
Ports 3~4: 2*10/100/1000M 30W PoE RJ45 (IEEE 802.3af/at)
Port 5: 1*1000M SFP slot.
DC 48V-57V power input.
-30~65℃.
