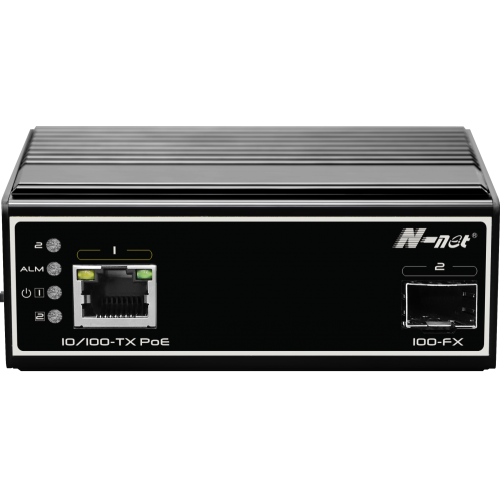

2 ports industrial fast ethernet POE switch
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, EXW, FCA
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- China, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,EXW,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | China,Shenzhen |
Overview
It is a 2-port industrial PoE switch that supports up to 1 *10/100M PoE downlink port, 1*100M SFP slot.
With relay alarm function for power off, PoE off and network broken.
With high anti-interference ability, the product supports 6KV surge protection, 6KV/8KV ESD protection, which can be used in a variety of environments.
It has the characteristics of reliable work, strong and durable, high performance and so on. It can be used in security network video monitoring system, network engineering and other occasions.
Features
With 1*10/100M PoE port, 1*100M SFP slot;
Supports relay alarm for power off, network broken and PoE off;
With high anti-interference ability, the product supports 6KV lightning protection, 6KV/8KV ESD protection, which can be used in a variety of environments;
Support wall type and desktop installation, reliable work, strong and durable, can be widely used in security network video monitoring, network engineering and other occasions.
Specifications
|
Item |
|
|
|
Power |
Power supply |
Power adapter |
|
Range of voltage |
DC48V~57V |
|
|
Consumption |
Self-consumption<5W |
|
|
Ethernet ports parameter
|
Ethernet ports parameter
|
port 1: 10/100Base-TX 30W PoE RJ45 port 2: 100Base-FX SFP slot
|
|
Relay alarm
|
Relay alarm for power off, network broken and PoE off
|
|
|
Cable and distance
|
Use cat5e/6, 100m max.
|
|
|
Switch parameter |
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3ab |
|
Switch fabric |
0.4Gbps |
|
|
Thoughput |
0.2976Mpps |
|
|
Buffer |
1M |
|
|
MAC address table |
1K |
|
|
Indicator |
Power |
2 *red |
|
Uplinkindicator light |
Green LEDs indication Link/Act |
|
|
Downlink indicator light |
On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE |
|
|
Protection |
Surge |
6KV, standard: IEC61000-4-5 |
|
ESD |
6KV: contact / 8KV: air, standard: IEC61000-4-2 |
|
|
Enviroment |
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Humidity |
0~95%(No condensation) |
|
|
Structure |
Demension(L×W×H) |
101mm×65mm×36mm |
|
Material |
Aluminum |
|
|
Colour |
Black |
|
|
Net-weight |
300g |
|

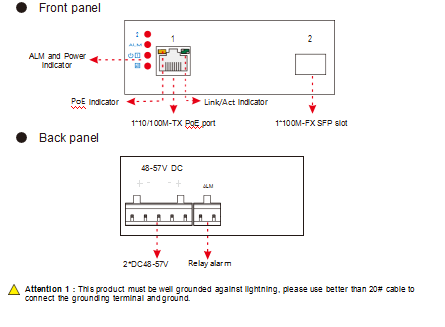

Panel diagram

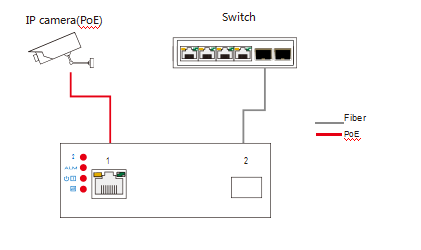

Application

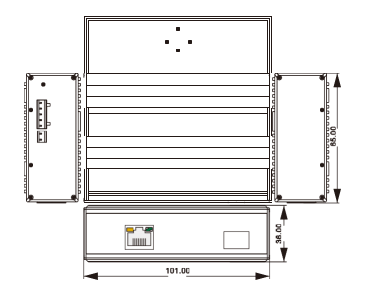

Dimensions
