3 ports gigabit industrial poe switch
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, EXW, FCA
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- China, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,EXW,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | China,Shenzhen |
Overview
It is a 3-port, full gigabit industrial PoE switch that supports up to 2*10/100/1000M PoE downlink ports, 1*1000M SFP port. 2*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.
Supports relay alarm for power off, network broken, PoE off; 6KV surge protection, 6KV contact/8KV air ESD protection;
Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring, network engineering and other occasions；
It has the characteristics of reliable work, strong and durable, high performance and so on.
Features
With 2*10/100/1000M PoE downlink ports,1*1000M SFP port ;
Supports relay alarm for power off, network broken, PoE off;
6KV surge protection, 6KV contact/8KV air ESD protection;
Supports desktop installation, which is reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Supports working temperature -40℃～75℃.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 48~57V |
|
Consumption |
Self consumption<5W |
|
Downlink ports |
Ports 1~2: 10/100/1000Base-T 30W PoE ;
|
|
Uplink ports |
Port 3: 1000Base-X SFP
|
|
Relay alarm |
Relay alarm for power off, network broken, PoE off; |
|
Cable and distance |
Use cat5e/6,100m max |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
6 Gbps |
|
Though put |
4.46 Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 2 *red ; Uplink3: Green LEDs indicate Link/Act Downlink 1~2: On RJ45 green LEDs indicate Link/Act Yellow LEDs indicate PoE
|
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
|
|
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
101 mm×65 mm×36mm |
|
Material |
Aluminium alloy |
|
Colour |
Black |
|
Net-weight |
300g |

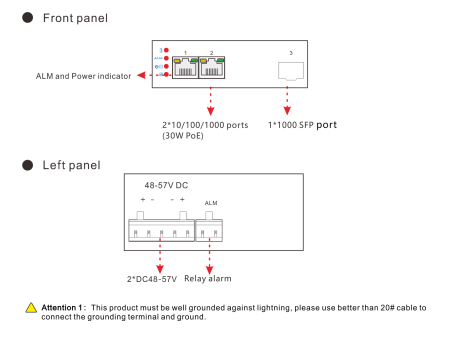

Panel diagram

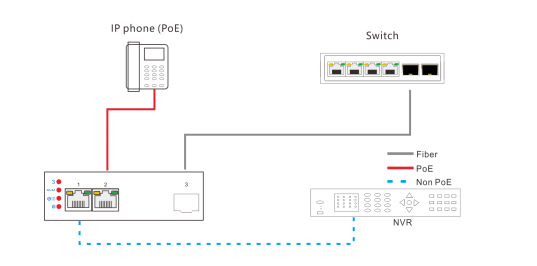

Application

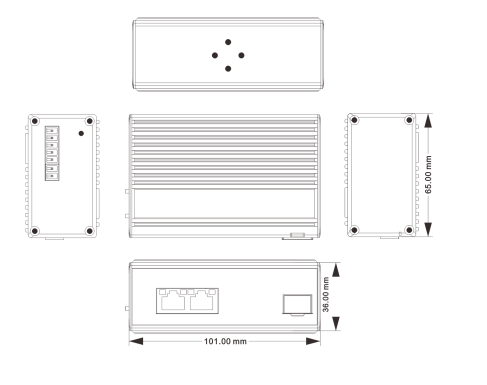

Dimensions
Order information
Model
Description
NIE6021PG
With 2*10/100/1000M 30W PoE downlink ports and 1*1000M SFP port;
2*DC48-57V power supply(Power adaptor buy extra);
Supports relay alarm function for power off, network broken and PoE off;
