4 ports full gigabit unmanaged Industrial PoE switch
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | Shenzhen,Yantian |
Description

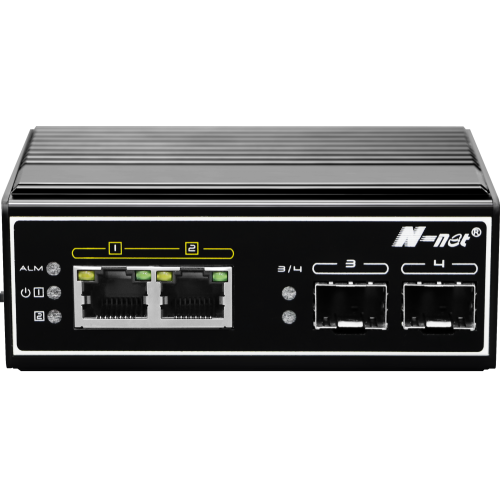

The NIE6022PG is a 4-port industrial full gigabit PoE switch that supports up to 2 *10/100/1000M 90W high power PoE
ports and 2*1000M SFP ports.
Fiber ports provides 2 modes through the dip switch, 100M mode and 1000M mode to adapt variety needs.
It supports the PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.It can
automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly
reduces the maintenance difficulty of engineering.
It has the characteristics of reliable work, strong and durable, high cost performance and so on. It can be used in security
network video monitoring system, network engineering and other occasions.
Features
With 2*10/100/1000M PoE ports and 2*1000M SFP ports;
Provides 2 high power PoE ports, up to 90W single port;
Fiber ports provides 2 modes through the dip switch, 100M mode and 1000M mode to adapt to variety needs;
Supports relay alarm for power off, network broken and PoE off;
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.It can
automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It
greatly reduces the maintenance difficulty of engineering;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～75℃.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 48~57V |
|
Consumption |
Self consumption<5W |
|
Downlink ports |
Ports 1~2 10/100/1000Base-T 90W PoE RJ45 |
|
Uplink ports |
Ports 3~4 supports 2 modes of 100Base-FX and 1000Base-X |
|
PoE Auto-check |
If detect the frozen PD device, restart it |
|
Working mode of fiber ports |
It can be selected 100M or 1000M work mode by dip switch |
|
Relay alarm |
1 channel relay alarm output for power off, ports PoE off, ports link down |
|
Cable and distance |
Use cat5e/6,100m max |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
8 Gbps |
|
Though put |
5.95 Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 2 *red ; Uplink3~4: Green LEDs indicate Link/Act Downlink 1~2: Yellow LED indicate PoE, green LEDs indicate Link/Act |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
101 mm×65 mm×36mm |
|
Material |
Aluminium alloy |
|
Colour |
Black |
|
Net-weight |
300g |
Package Dimension
Here is the dimension of NIE6022PG for your reference.
Application
Ordering Information
Model
Description
NIE6022PG
With 2*10/100/1000M 90W PoE downlink ports and 2*1000M SFP ports;
2*DC48-57V power supply(Power adaptor buy extra);
Fiber ports provides 2 modes through the dip switch, 100M mode and 1000M mode to adapt to
variety needs;
Supports relay alarm function for power off, network broken and PoE off;
Supports the PoE Auto-check function.
