10/100/1000m Industrial unmanaged switch with poe

Overview

NT-IN314 Industrial Gigabit Ethernet POE Switch series is an industrial-standard 5-port Gigabit switch. It provides 4-port 10/100/1000BASE-TX Ethernet ports and additional one 1000Base-FX fiber port. Rigorous industrial design makes its stability, practicality with basic protection, making it to flexible enough to Ethernet expansion in harsh industrial environments.

NT-IN314 Industrial Gigabit Ethernet POE Switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

NT-IN314 Industrial Gigabit Ethernet POE Switch series complied with IEEE 802.3at High Power over Ethernet technology (optional). It is backward compatible with 802.3af PoE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With Data and Power over Ethernet from one unit, NT-IN314 Industrial Gigabit Ethernet POE Switch series shall reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Support Agreement:IEEE802.3 10Base-T.IEEE802.3u 100Base-TX/FX.IEEE802.3ab 1000Base-T. IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow Control. IEEE802.3at PSE
3. 10/100/1000Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
4. This Industrial Ethernet switch uses a store-and-forward mechanism to avoid packet loss and error frames
5. Support full-duplex flow control / half-duplex back pressure mode
6. Jumbo frames support a maximum of 9000 bytes
7. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
8. -40 To 80℃ operating temperature to meet a variety of complex environments
9. IP40 protection standard housing
10. Power port and Ethernet port supports ESD protection and EFT protection
11. DIN rail and panel mounting for efficient usage
12. Support Dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
13. 12 GBPS back plane bandwidth, 1 k MAC address automatic learning and 1 MB internal cache for data buffer
14. Support POE power supply up to 25.5W (optional)

Specifications

Certification

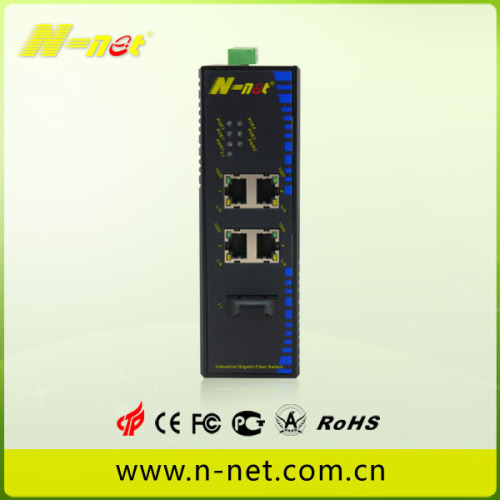

Product picture
