Overview
Fiber optic transceivers usually have the following basic characteristics:

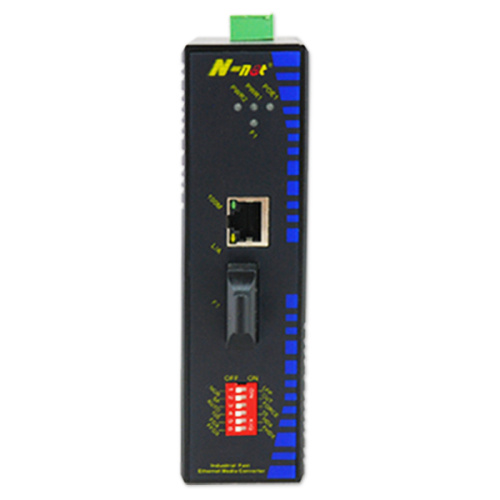

NT-IN111D is Industrial Fast POE media converter equipped with one 10/100M UTP port and low-speed data. This Industrial Media Converter provides one 10/100Base-T ports, 3 low-speed data ports and one 100Bse-FX port.
1.Provide ultra-low latency data transmission.
With strictly industrial design, it is fundamental guarantee for stability and practicability to flexible extends transmitting distance of the Ethernet and low speed data in the extreme industrial environment.
2.Fully transparent to network protocols.
Apply NT-IN111D Industrial Fast POE media converter equipping low-speed data port with NT-IN114D 10/100 Fiber Ethenrnet Network Switch, the buffering of heavy traffic burst, rate smoothing of network service and remote transmission of low-speed data can perfectly resolve, having the leading feature advantage in this field.
3. Adopt special ASIC chip to realize data line speed forwarding. Programmable ASICs concentrate multiple functions on a single chip, which has the advantages of simple design, high reliability, and low power consumption. It can enable the device to obtain higher performance and lower cost.
NT-IN111D Industrial Fast POE media converter can install in control cabinet by adopting optional way of DIN-RIAL or Wall mount. It is a compact product, supporting wide working temperature, redundant power input, IP40 protection, LED indicator light, being a best choice for the industrial special application and a reliable solution for your industrial Ethernet connections.
4.Rack-type equipment can provide hot-swap function for easy maintenance and uninterrupted upgrade.
Features
- Procotols: IEEE802.3/u, 10Base-T.100Base-TX
- 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
- Take cut-through and forward technology, efficiently reducing the time-delay on network.
- Support Max up to 11K Bytes packet transmission
- Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
- Support 3 low-speed data port, each can set as a separated RS232,RS485 or contact closure type.
- Low-speed data passage adopt Time Division Multiplexing transmit, that makes low delay and easy apply without occupy IP address.
- Low-speed data port support 0-115200bps speed
- Low-speed data port support multi protection from lightning, surge, overvoltage and ESD
- 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
- Support remote power off detection and indication
- -40 To 80℃ operating temperature to meet a variety of complex environments
- IP40 protection standard housing
- Power port and Ethernet port supports ESD protection and EFT protection
- DIN rail and panel mounting for efficient usage
- Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
Specification:
|
Parameter |
Specifications |
|
Design Level |
Industrial grade IP40 design standards |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3/u.10Base-T.100Base-TX |
|
Wavelength |
1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:2 km Single fiber single mode: 20/40/60/80/100 km Dual-fiber single mode:20/40/60/80/100 /120 km Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B One optical port: Multi-mode :SC / FC/LC(50/125, 62.5/125μm) Single mode : SC / FC/LC (9/125) 3 low-speed data port, Industrial terminals, connecting to RS232,R485,contact closure according to the setting |
|
Conversion means |
Store and Forward mode or Time division |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<10-9 |
|
MTBF |
50,000 hrs |
|
LED indicator |
L/A(Link/Transmit),100M(Speed), PWR(Power),RPF(Remote power-off),SD(Fiber signal) D1(Data passage 1 signal),D2(Data passage 2 signal),D3(Data passage 3 signal) |
|
Power supply |
Power Input Range: 12 ~ 48VDC/24VAC , 6-PIN Terminals, Redundant dual power, support power-off detection |
|
Power consumption |
<2W (without PSE function) |
|
Operating temperature |
-40~80ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40~80ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
155mm(length)×125mm(wide)×50mm(height) |
|
|
|
Certification:
|
EMI |
FCC Part 15, CISPR (EN55022) class A |
|
EMC |
FCC,CE |
|
EMS |
EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 4 EN61000-4-5 (Surge), Level 4 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 EN61000-4-11 |
|
Shock |
IEC 60068-2-27 |
|
Free Fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
|
Green product |
RoHS |
