Overview

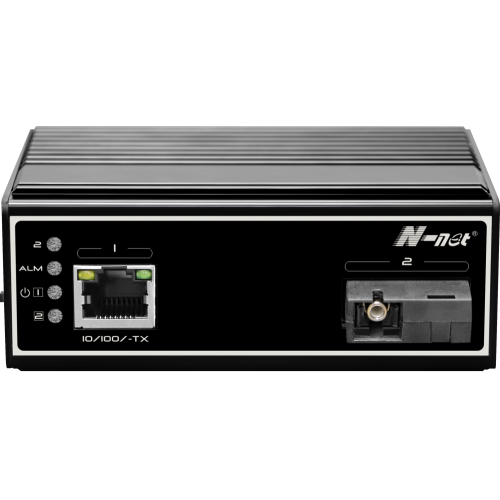

The NIE6011E(SC connector) is a 2-port industrial switch that supports up to 1 *10/100M RJ45 port and 1*100M SC slot.
It supports relay alarm for power off, network broken.
It has the characteristics of reliable work, strong and durable, high cost performance and so on. It can be used in security network video monitoring system, network engineering and other occasions.
Features
With 1*10/100M RJ45 port and 1*100M SC port;
Supports relay alarm for power off, network broken;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～75℃.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 12~60V |
|
Consumption |
Self consumption<5W. |
|
Downlink ports |
Ports 1: 10/100Base-TX RJ45
|
|
Uplink ports |
Ports 2: 100Base-FX SC slot |
|
Rlay alarm |
1 channel relay alarm output for power off, ports link down |
|
Cable and distance |
Use cat5e/6,100m max |
|
Standard |
IEEE802.3, IEEE802.3u |
|
Switch fabric |
0.4 Gbps |
|
Thoughput |
0.2976 Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 2 *red ; Uplink 2: Green LEDs indicate Link/Act Downlink 1: Green LEDs indicate Link/Act
|
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
101mm×65 mm×36mm |
|
Material |
Aluminium |
|
Colour |
Black |
|
Net-weight |
300g |

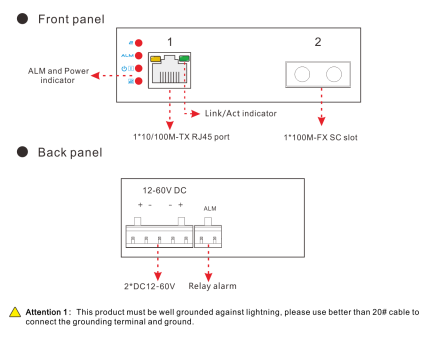

Panel diagram

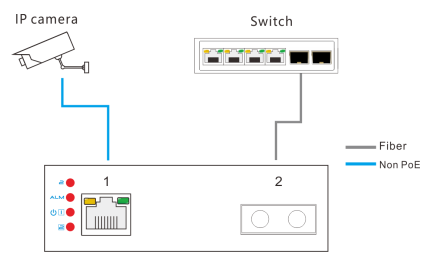

Application

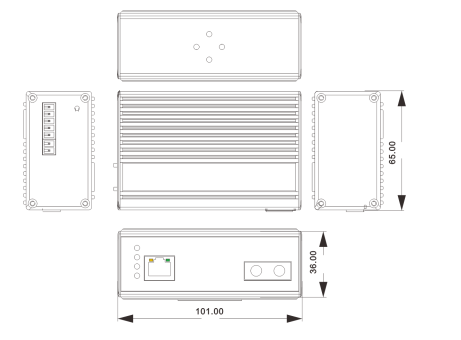

Dimensions
Order information
Model
Description
NIE6011E(SC connector)
With 1*10/100M RJ45 port and 1*100M SC port;
2*DC12-60V power supply(Power adaptor buy extra);
Supports relay alarm function for power off, network broken.
