N-net Fast Ethernet Switch 2 Fiber Ports
In response to the needs of industrial applications, Siemens of Germany released the agreement in 2001. It combines the original Profibus with Internet technology to form a ProfiNet network solution.

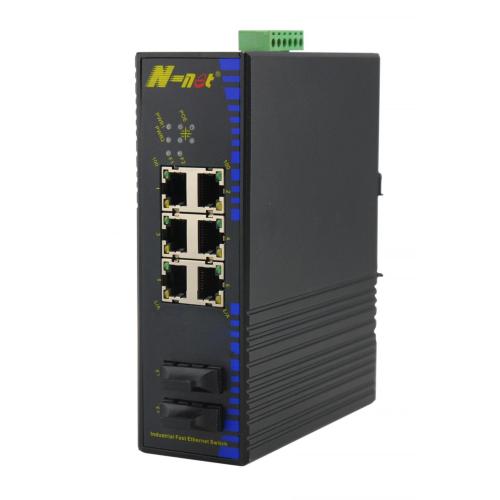

NT-IN126 is Industrial Fast Ethernet Media Converter with 8 ports. It supports 6 port 10/100BASE-T and 2 port 100Base-X.
Distributed automation system based on component object model (COM);
This series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.
Provides open and transparent communication between ProfiNet fieldbus and standard Ethernet;
It can support 4 ports POE function. Without power and wires, can power supply for HD IP Camera, wireless AP.IP phone and so on. Our POE unmanaged Fast Ethernet Media Converter support IEEE802.3at, 25.5W output.
Provides a system model that is independent of the manufacturer, including the device layer and the system layer.
ProfiNet uses standard TCP / IP ten Ethernet as the connection medium, and uses standard TCP / IP protocol plus application layer RPC / DCOM to complete communication and network addressing between nodes. It can be connected to the traditional Profibus system and new intelligent field devices at the same time.
Industrial Slim Type Fast Switch Features
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Standard::IEEE802.3u 100BASE-FX,IEEE802.3u 100BASE-TX. IEEE802.3 10BASE-T.
- IEEE802.3x Flow Control. IEEE802.3at
- 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with various cards, switches, HUB and other Ethernet devices.
- It uses a store-and-forward mechanism to avoid packet loss and error frames
- Support 6 standalone 10M/100Mbps Adaptive switched twisted-pair cable. Realize electricity back-up and mutil-user access
- Support jumbo frame up to 1600Bytes
- Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
- 12V to 52V DC or 24V AC Wide power input, redundant power and reverse polarity protection
- -40 To 85℃ operating temperature to meet a variety of complex environments
- IP40 protection standard housing
- Power port and Ethernet port supports ESD protection and EFT protection
- DIN rail and panel mounting for efficient usage
- Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
- Support POE power supply up to 25.5W (optional)
- Provide up to 4K MAC address entries and built in 1.25 Mb RAM
10/100M Fiber Ethernet Switch Specifications
|
Parameter |
Specifications |
|
Design Level |
Industrial grade IP40 design standards |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3u 100BASE-FX,IEEE802.3u 100BASE-TX. IEEE802.3 10BASE-T. IEEE802.3x Flow Control. IEEE802.3at |
|
Wavelength |
1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:2 km Single fiber single mode: 20/40/60/80/100 km Dual-fiber single mode:20/40/60/80/100 /120 km Category-5 twisted pairs: 100m |
|
Port |
Eight RJ45 port: Connecting STP/UTP category-5 twisted pairs, EIA568A/B Two optical port: Multi-mode :SC / FC/LC(50/125, 62.5/125μm) Single mode : SC / FC/LC (8.3/125, 8.7/125, 9/125 or 10/125μm) |
|
Conversion means |
Store and Forward mode |
|
Address table |
4K |
|
Buffer space |
1.25 Mbit |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Delay |
store-and-forward:9.6us |
|
BER |
<10-9 |
|
MTBF |
50,000 hrs |
|
LED indicator |
POE1 ( POE1 power on/off).POE2 ( POE2 power on /off).POE3 ( POE3 power on/off). POE4 ( POE4 power on/off),(1~6) UTP Port: L/A ,100 PWR1(PWR1 power on/off) ,PWR2(PWR2 power on/off) F1(F1 Link/transmission),F2(F2 Link/transmission) |
|
Power supply |
Power Input Range: 12 ~ 48VDC/24VAC , 6-PIN Terminals, Redundant dual power |
|
Power consumption |
7W |
|
Storage humidity |
5%~90% non-condensing |
|
Operating humidity |
5%~90% non-condensing |
|
Operating temperature |
-40~80℃ |
|
Storage Temperature |
-40~85℃ |
|
Dimensions |
155mm×125mm×50mm (W×D×H) |
