Low speed data fiber switch

Overview

2. High communication rate

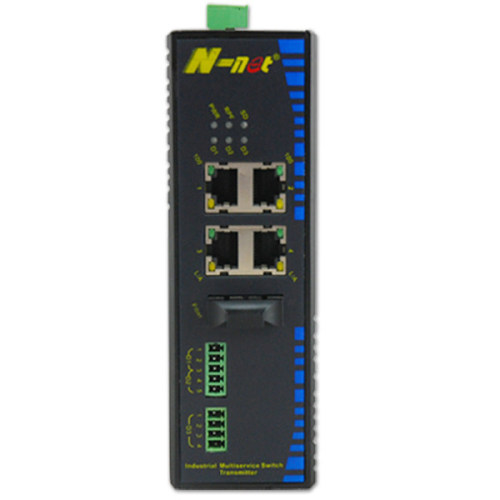

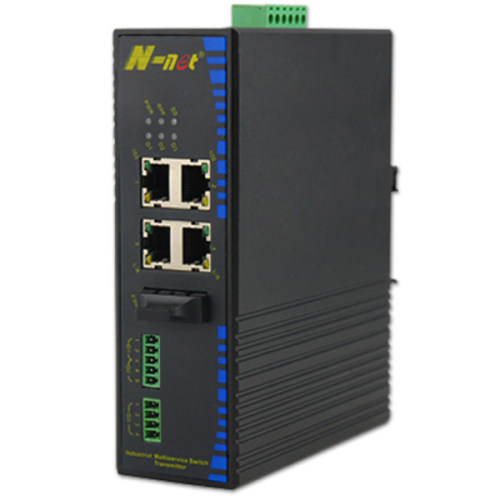

NT-IN114D Industrial Fast Ethernet Switch series is Industrial Fast Ethernet switch equipping 4 10/100M UTP port with low-speed data port. It provides 4 10/100Base-T ports, 3 low-speed data port and 1100FX port.

10. Fast Ethernet of 100 Mb / s has begun to be widely used, and the 1Gb / s Ethernet technology has gradually matured, while the traditional field bus has a maximum speed of only 12Mb / s (such as Siemens Profibus-DP).

 With strictly industrial design, it is fundamental guarantee for stability and practicability to flexible extends transmitting distance of the Ethernet and low speed data in the extreme industrial environment.

Obviously, the speed of Ethernet is much faster than the traditional field bus, which can fully meet the increasing bandwidth requirements of industrial control networks.

Apply NT-IN114D Industrial Fast Ethernet Switch equipping low-speed data port with NT-IN111D industrial media converter, the buffering of heavy traffic burst, rate smoothing of network service and remote transmission of low-speed data can perfectly resolve, having the leading feature advantage in this field.

3. Strong resource sharing ability

NT-IN114D Industrial Fiber Switch can install in control cabinet by adopting optional way of DIN-RIAL or Wall mount. It is a compact product, supporting wide working temperature,

With the development of Internet / Intranet, Ethernet has penetrated into all corners, users on the network have released the constraints on the geographical location of resources,

redundant power input, IP40 protection, LED indicator light, being a best choice for the industrial special application and a reliable solution for your industrial Ethernet connection.

and can browse the data of the industrial control site on any computer connected to the Internet to achieve "Integrated control" is unmatched by any other fieldbus.

NT-IN114D-AT (AF) Industrial Network Switch series is adding PoE function, equipping 4 POE power port. No need of the power or power cable, the high definition IP camera, wireless AP, IP telephone device can be powered up by the Poe technology through a UTP. For N-net Poe unmanaged industrial Switch support IEEE802.3at standard, output 25.5W.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard: IEEE802.3/u, 10Base-T, 100BASE-TX, IEEE802.3af, IEEE802.3at
3. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
4. It uses a store-and-forward mechanism to avoid packet loss and error frames
5. Provide 4 independent 10/100M Base-TX ports to UTP redundant and multi user access
6. Support Max up to 1552Bytes packet transmission
7. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
8. Support 3 low-speed data port, each can set as a separated RS232,RS485 or contact closure type.
9. Low-speed data passage adopt Time Division Multiplexing transmit, that makes low delay and easy apply without occupy IP address.
10. Low-speed data port support 0-115200bps speed
11. Low-speed data port support multi protection from lightning, surge, overvoltage and ESD
12. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
13. Support remote power off detection and indication
14. -40 To 80℃ operating temperature to meet a variety of complex environments
15. IP40 protection standard housing
16. Power port and Ethernet port supports ESD protection and EFT protection
17. DIN rail and panel mounting for efficient usage
18. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
19. Support POE power supply up to 25.5W for single port
20. 7Gbps Non-blocking switching bandwidth line speed, 2K MAC address automatic learning and 16Mb Internal cache

Specification

Certification

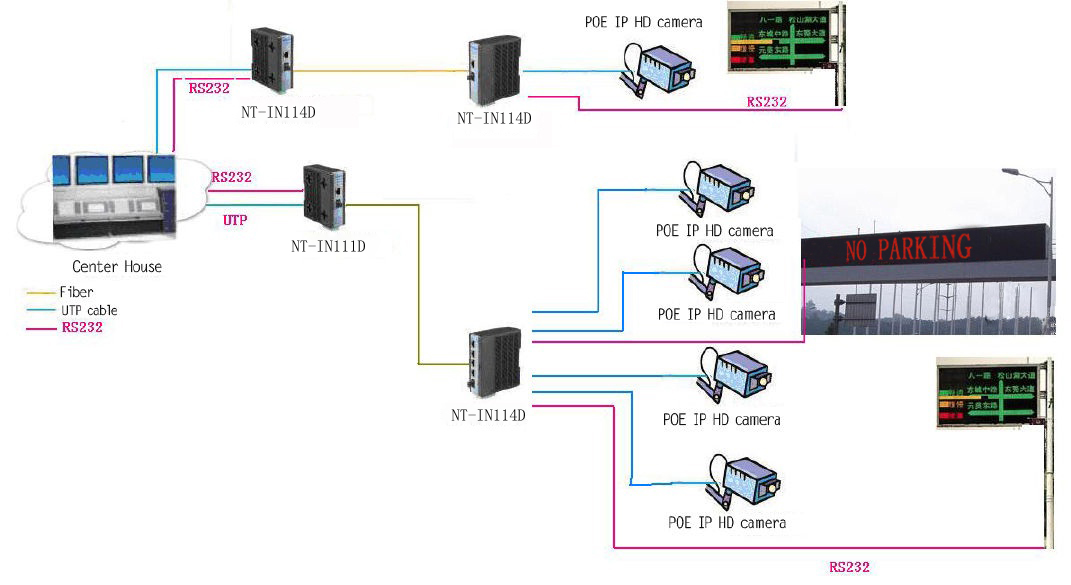

Application

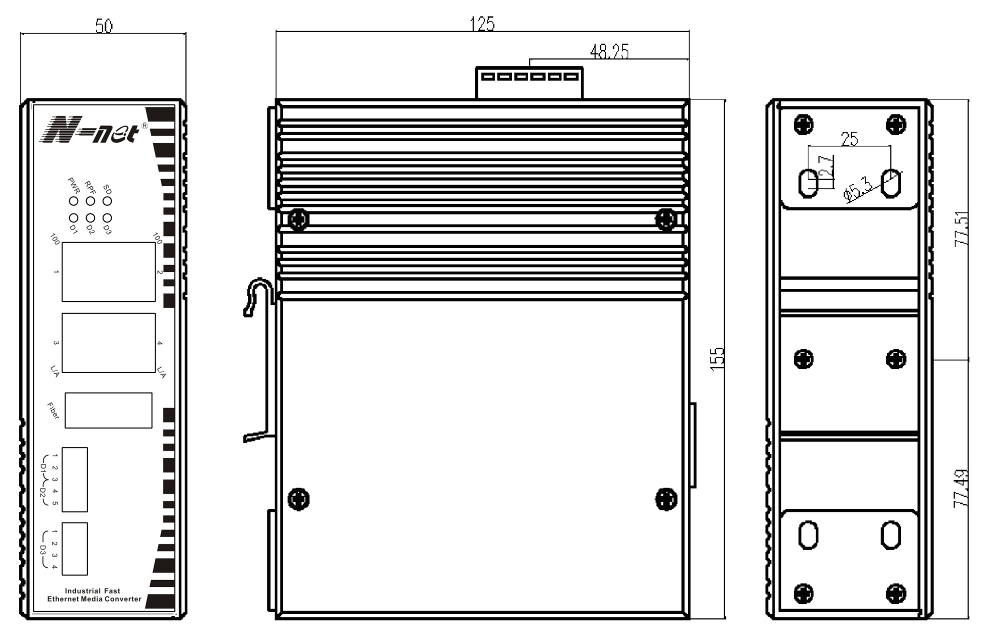

Dimensions
