Fast Ethernet Media Converter

N-net Fast Ethernet Media Converter

The XML data of a PROFInet device should include the following data:

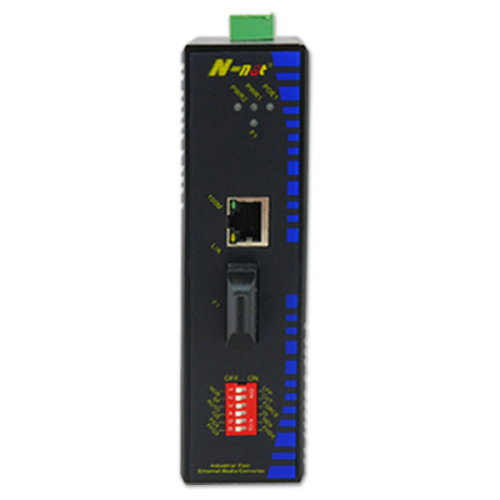

NT-IN111 series is 10/100Base-TX to 100Base-FX Industrial Fast Ethernet Media Converter.

⑴ The name and ID number of the PROFInet device;

It will extend transmission distance of network up to 120Km via fiber port, and the UTP port can operate at 10M or 100M application.

⑵IP address of PROFInet device, access method of diagnostic data and device connection method;

It is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

⑶Hardware distribution of PROFInet equipment, equipment interface and variables, data types and formats defined for each interface;

 It accepts an integrated power supply with a wide range of voltages for worldwide operation.

⑷The storage address of PROFInet equipment in the whole project.

It can also be equipped dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

PROFInet equipment encapsulates all its functions into its software, and provides variable interfaces to connect with other PROFInet equipment.

This  series is complied with IEEE 802.3at High Power over Ethernet technology (optional). It is backward compatible with 802.3af PoE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration.

Each variable of the variable interface represents a certain sub-function, including operation, input / output enable, reset, end, stop, start and error. A PROFInet device can be encapsulated by a controller, an actuator or even a control network. The PROFInet device shown in Figure 2 encapsulates a Profibus-DP control network.

 With Data and Power over Ethernet from one unit, NT-IN111 series can reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

10/100M Media Converter Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard: IEEE802.3u 100BASE-FX, IEEE802.3u 100BASE-TX, IEEE802.3 10BASE-T, IEEE802.3x Flow Control,  IEEE802.3at
3. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
4. It uses a store-and-forward mechanism to avoid packet loss and error frames
5. Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
6. Support jumbo frame up to 9K(cut-through mode)
7. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
8. -40 To 80℃ operating temperature to meet various tough environments
9. IP40 protection standard housing
10. Power port and Ethernet port supports ESD protection and EFT protection
11. DIN rail and panel mounting for efficient usage
12. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
13. Support DIP switches for operation mode setting
14. Support POE power supply up to 25.5W(optional)

DIP Fast Media Converter Specifications

Fast Ethernet Media Converter Application
