Industrial Unmanaged 10/100M PoE Fiber Switch

Overview

To start the password recovery operation of the router, first start the HyperTerminal, press the Ctrl + Break key of the computer when the router is powered on,

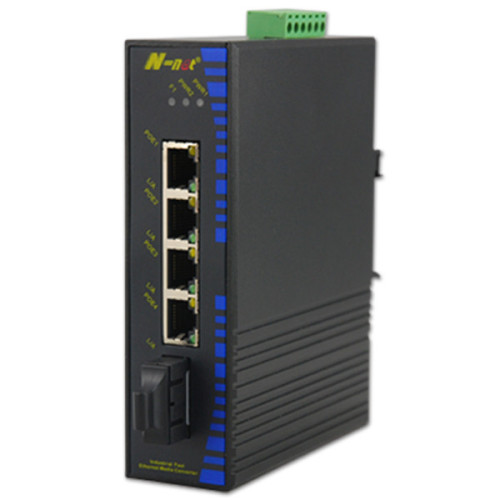

The N-net NT-IN114 Industrial Fast Ethernet POE switch series is quad-port 10/100Base-TX to single-port 100Base-FX Industrial Fast Ethernet Media Converter with single fiber port and double copper ports.

Enter the ROM monitoring state rommon>, use the configuration register command confreg to set the parameter value 0x2142, skip the configuration file
After setting the password, revert to 0x2102.

The converters are able to extend transmission distance of network up to 120Km via fiber port, and the UTP port can operate at 10M or 100M application.

The reference command is:
rommon> confreg 0x2142
router (config) # config-register 0x2102

NT-IN114 Industrial Fast Ethernet POE switch series is packaged in a compact IP40 case that allows either DIN rail or panel mounting for efficient usage of cabinet space.

You cannot enter the privileged state without the privileged password, you can only enter the ROM monitoring state, use the confreg 0x2142 command.

 It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

After the password is changed, it can be restored to the state of using the configuration file in the privileged mode.

NT-IN114 Industrial Fast Ethernet POE switch series is complied with IEEE 802.3at High Power over Ethernet technology (optional). It is backward compatible with 802.3af PoE standards to allow users flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With Data and Power over Ethernet from one unit, NT-IN114 Industrial Unmanaged 10/100M PoE Fiber Switch series can reduce cables deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard: IEEE802.3u 100BASE-FX,IEEE802.3u 100BASE-TX.IEEE802.3 10BASE-T.
3. IEEE802.3x Flow Control.IEEE802.3at
4. 10/100Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices
5. This Industrial Unmanaged 10/100M PoE Fiber Switch uses a store-and-forward mechanism to avoid packet loss and error frames
6. This Industrial Fast Ethernet POE switch Support cut-through transmission and full-duplex flow control / half-duplex back pressure mode
7. Support jumbo frame up to 1552K(store-forward mode)
8. 12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection
9. -40 To 80℃ operating temperature to meet a variety of complex environments
10. IP40 protection standard housing
11. Power port and Ethernet port supports ESD protection and EFT protection
12. DIN rail and panel mounting for efficient usage
13. This Industrial Fast Ethernet POE switch Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
14. Support POE power supply up to 25.5W(optional)

Specifications

Certification

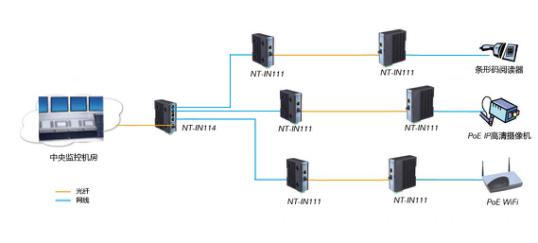

Application
