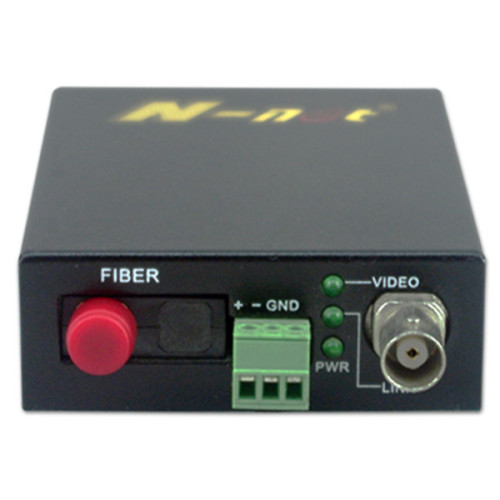

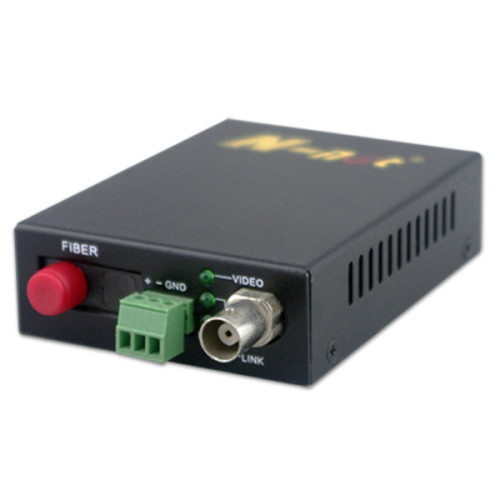

1 Channel video HD-SDI Over Fiber Video Converter
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pc/day |
| Supply Ability: | 5000PCS around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE,FCC,ISO9001 |
| HS Code: | 8517622100 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Yantian |
Overview
NT-HD100R series video to optical transmitter/ receiver provides long distance transmission of HD-SDI/ SD-SDI/ ASI video and data. The max transmission bit rate can reach up to 1485Mbps with one channel directional video and one way return RS485 data. It is designed with multi rate cable equalizer dealing with pathological signal and thunder protection technology to meet harsh outdoor environment.
Features:
Receiver support one way SDI split into two function
Max transmission bit rate up to 1485Mbps
Support video input formats transparent transmission
Compatible with uncompressed HD video as 720p.1080i.1080p@30fps etc.
Equipped with automatic multi-rate cable equalizer(100M/120M)
Support cable driver, balance transmission loss over cable
Support pathological signal transmission
Support SNMP and real-time monitoring on working status of board.
Provide long distance transmission of SDI video.
Thunder protection technology, surge protection 4kv
simple-to-setup, plug and play, receiver rack-mountable to chassis
Support RS485, Manchester/ Biphase data
Overload protection, auto recovery
Specification
|
Video input |
|
|
Physical interface |
BNC |
|
Input port |
1 |
|
Video Input Impedance |
75Ω |
|
Auto balancing |
1694A Standard cable:140m;Common 75-4 cables:80m |
|
Input video |
HD-SDI:SMPTE-292M standard; SD-SDI,SMPTE-259M standard |
|
Video input level |
＞380mVp-p |
|
Video output |
|
|
Physical interface |
BNC |
|
Output port |
1 |
|
Video format |
HD-SDI:SMPTE-292M standard; SD-SDI: SMPTE-259M standard |
|
Video output level |
800mVp-p±10% |
|
Up /down time |
<0.8ns |
|
Max jitter |
<0.2UI (270Mbps) |
|
Data |
|
|
Physical interfact |
Industrial crimping terminal |
|
Baud rat |
0~115.2 kbps |
|
probability of error |
<10-9 |
|
Optical |
|
|
Fiber |
Single fiber |
|
Optical port |
FC |
|
Wavelength |
1310nm, 1550nm |
|
Operating Environment |
|
|
Operating temperature |
-20°C~+70°C |
|
Storage temperature |
-40°C~+85°C |
|
Humidity |
0~95%,non-condensing |
|

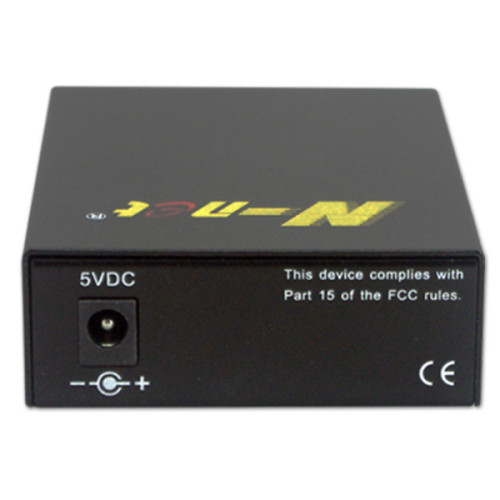

Power supply |
5V/ 12VDC, ± 20% range |
|
Power |
4.5W |
|
Mechanism Spec. |
|
|
Weight |
1.06kg |
|
Dimension |
94mm×71mm×24mm(BNC and install edge excluded) |
|
Reliability |
|
|
MTBF |
≥100,000 hours |
|
Surge |
4kV |
|
Electro-Static |
8kV |
|
Indicators |
|
|
LED indicators |
Power supply, video, optical link |

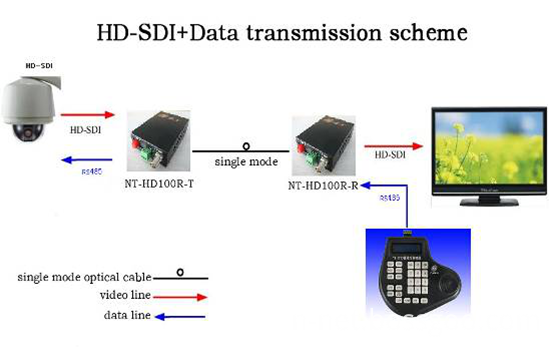

Application
Order information
|
Model |
Description |
|
|
one channel HD-SDI transceiver |
NT-HD100R-T-20 |
Transmitter, one channel HD-SDI video, one way return RS485 data, single mode 20km. |
|
NT-HD100R-R-20 |
Receiver, one channel HD-SDI video, one way return RS485 data, single mode 20km. |
|
|
one channel HD-SDI transceiver |
NT-HD1000 |
Transmitter: one channel HD-SDI video input, standalone Receiver: two channel HD-SDI video output, standalone (rack-mountable to NT-HD2000), 20KM |
|
one channel HD-SDI transceiver |
NT-ND1001 |
Transmitter: one channel HD-SDI video input, one way return RS485 data (RS232/ 422S optional), standalone Receiver: two channel HD-SDI video output, one way return RS485 data (RS232/ 422S optional), standalone(rack-mountable to NT-HD2000), 20KM |
|
one channel HD-SDI receiver module |
NT-HD2x100R-20-C |
Receiver module, dual fiber ports, connected with two VS1000T transmitter, four channel HD-SDI video output, rack-mountable to 3U chassis, 20KM |
|
one channel HD-SDI receiver module |
NT-HDx1001R1-20-C |
Receiver module, dual fiber ports, connected with two VS1000T transmitter, four channel HD-SDI video output, two way data(RS232/485/422S optional), rack-mountable to 3U chassis, 20KM |
|
2U chassis |
NT-HD2000 |
2U 19``, 16 slots chassis for one channel HD-SDI transceiver, dual power supply, unmanaged |
|
3U chassis series |
NT-HD3000 |
3U, metal frame, one patch panel, one indicator panel and power panel, 21 slots in total, 1 for main control, 3 for power supply, 17 slots for video transceiver module |
|
NT-HD3-CTL |
Chassis management module, one 10/100M Ethernet port, one R232 port, one RS485 port |
|
Installation Mechanism(mm)
