Managed 48 Ports Gigabit Ethernet Switch

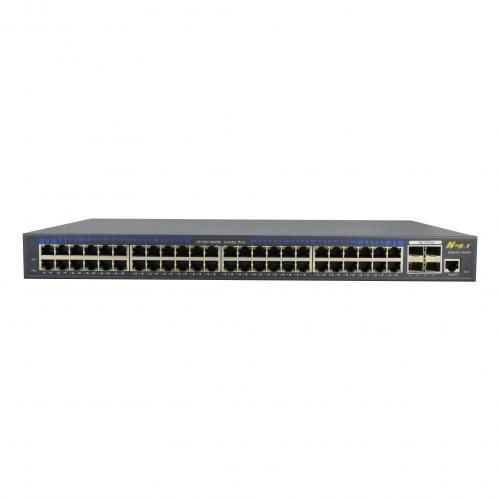

N-net Managed 48 Ports Gigabit Ethernet Switch

NT-50MG48T4XGF Ethernet switch provides 48 10/100/1000M Ethernet ports and 4 uplink 10G SFP+ ports that with multilayer exchange capacity and wire speed forwarding capability. Exchange capacity is the other core index of network management switch.Packet forwarding rate can reflect the packet forwarding capacity of switch.The three are related to each other. If the backplane bandwidth is high, the exchange capacity is large and the packet forwarding rate is high.Users can set up the functions of the switch through Web, CLI, TELNET, SNMP and many other ways. Switch is the most important equipment for LAN network connection. The management of LAN mostly involves the management of switch.This gigabit switch supports IP, MAC, VLAN, port, user identification element dynamic or static binding, also supports port isolation to prevent communication between 2 neighbor network equipment the same broadcast domain and reduce network risk. It is very suitable for converged applications of large networks and core applications of small and medium networks.

Managed Ethernet Switch Features

   1. Built-in efficient switching core to implement flow control and reduce broadcast packets

   2. Standard Compliance:IEEE802.3 ad, link aggregation protocol

IEEE 802.3, 10BASE-T Ethernet

IEEE 802.3u, fast Ethernet standard

IEEE, 802.3ab, Gigabit Ethernet standard

IEEE, 802.3z, Gigabit Ethernet optical fiber standard

IEEE, 802.3ae, 10G Ethernet standard

IEEE, 802.3x, full duplex Ethernet data link layer flow control

IEEE, 802.3az, EEE energy-efficient Ethernet standards

IEEE, 802.1AB, LLDP protocol

IEEE, 802.1D, STP protocol

IEEE, 802.1Q, VLAN standards

   3. Store-and-forward mechanism is employed to avoid packet loss and error frames

   4. 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices

   5. Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.

   6. Support spanning tree STP (802.1D) and RSTP (802.1W).

   7. G.8032, support <50ms industrial quick ring protection

   8. Jumbo frames support a maximum of 9.6K kilobtyes

   9. Support cable diagnosis, support enhanced management through WEB, CLI, TELNET, SSH, SNMP.

   10. 0 ºC To 55 ºC operating temperature to meet a variety of complex environments

   11. Copper ports support ESD protection

L2 Managed Switch Application

Network Switch Package
