Managed Fiber Ethernet Switch Gigabit
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- China, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000 pcs per day |
| Supply Ability: | 5000 pcs around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | ISO9000, CE, FCC |
| HS Code: | 8517622990 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | China,Shenzhen |

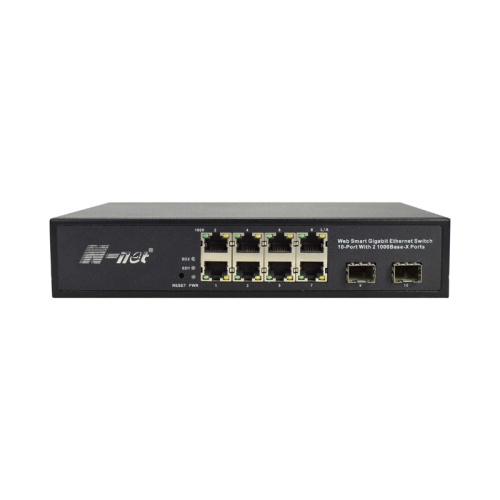

N-net Managed Fiber Ethernet Switch Gigabit
N-net NT-MG2800SFP gigabit Ethernet switch, with 20Gbps non-blocking switch fabric, 8k MAC Address table and 802.3x Full-Duplex flow control, this fiber switch offers wire-speed packet transfer performance without risk of packet loss.The managed switch supports SNMP protocol, which is composed of a set of simple network communication specifications. SNMP protocol can complete all basic network manaaged tasks, requires little network resources, and has some security mechanisms. The two Gigabit SFP (Small Factor Pluggable) slots can be installed with 1000Base-SX/LX mini-GBIC modules which offer incredible extensibility, flexibility and connectivity to the Core switches or Servers. The working mechanism of SNMP protocol is very simple, mainly through a variety of different types of messages, namely PDU(protocol data unit) to achieve the exchange of network information.For efficient management, with its built-in Web-based management, the NT-MG2800 managed network switch offers an easy-to-use and configuration facility.But the managed switch is much more expensive than the unmanaged switch. Via the WEB interface, N-net managed switch can be programmed for basic switch management functions such as per port speed duplex settings, Port Trunking, VLAN, Port Mirroring, Rapid Spanning Tree, 802.1X network security authentication and Misc Configuration.
Gigabit Managed Ethernet Switch Features
- Comply with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Ethernet standard
- Auto-MDI/MDI-X detection on each RJ-45 port
- Prevents packet loss with back pressure (half-duplex) and 802.3x PAUSE frame flow control (Full-duplex)
- 8K MAC address table, automatic source address learning and ageing
- 20Gbps switch fabric, non-blocking switch architecture
- 9.6K Jumbo Frame support at all speed (10/100/1000 Mbps)
- Support port-based and 802.1q VLAN function, up to 4096 VLAN groups
- 802.1w Rapid-Spanning Tree protocol support
- Link Aggregation support static mode and LACP (802.3ad) - up to 5 Trunk groups, each trunk for up to maximum 10 ports
Gigabit L2 Managed Switch Application
Network Switch Package
