Non-managed Gigabit Fiber Ethernet Switch

N-net Non-managed Gigabit Fiber Ethernet Switch

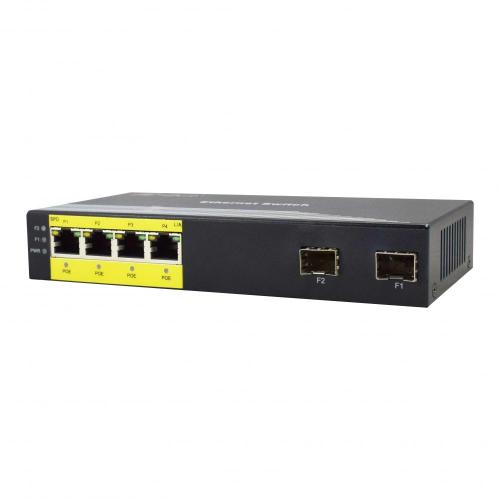

NT-G2400 is an L2 function gigabit Ethernet switch. This fiber switch is equipped with 4 Gigabit TP ports that accommodate optional 10/100/1000Base-T, and 2 fiber ports with 1000M SFP or SC 1*9 module. Unmanaged industrial switch have limited function and suitable for small network.It complies with the standard of IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, which greatly increase the flexibility and reduces the cost of network's establishment.Unmanaged switches do not support ARP protection, MAC address binding, vlan partitioning, and traffic based control. NT-G2400 gigabit switch also supports the Back pressure flow monitoring on Half-Duplex and IEEE 802.3x flow control monitoring in Full-Duplex. Single assembly, can not be used in large and medium-sized network, network upgrade, there are big limitations.It has become the best choice of Gigabit Desktop Access in the enterprise, cybercafe, community, and campus network's establishing.Unmanaged switch price is cheap, save money, the number of ports intensive, flexible user use.

Gigabit Ethernet Network Switch Features

1.  1.25G at fiber port, 10/100/1000M self-adaptive at Ethernet ports, Half/Full-Duplex self-adaptive
2.  About 1K MAC address capacity, update automatically
3.  Support broadcast storm protection
4.  The max-rate data transmission (wire-speed):1488000 frm/s (1000M), 148 800 frm/s (100M), 14,880 frm/s (10M)
5.  Support up to 10KB jumbo frames
6.  Support Store-and-Forward Working Mode; support Half/Full Duplex; support 802.3x flow control under Full Duplex working mode; support auto-sensation of MDI/MDIX
7.  Network line status LED: transmission rate indicator(10/100/1000M); Fiber and twisted-pair's connection and data transmission status
8.  Support 4 Ethernet ports' communication simultaneously, using for connecting NIC, switch, and HUB
9.  High-capacity network caching technology ensures data transmission and multimedia applications
10.  Support Volume Balancing, Isolating conflicts & Error Detection (CRC), realizing the function of non-blocking switch , ensuring data-transmission's security and stability
11.  High-degree of electromagnetic shielding properties and good electromagnetic compatibility
12.  FCC, 15 CLASS A and CE Certification

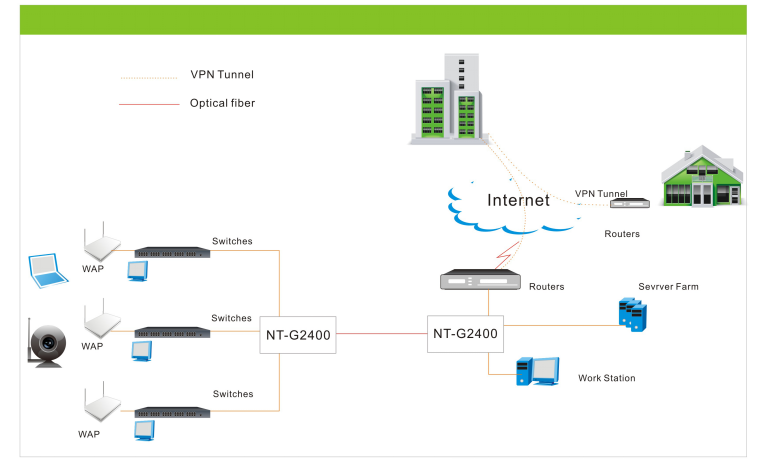

10/100/1000M Network Switch Application

Fiber port can connect with the access network; Ethernet ports can connect with switch or terminal equipment such as computers. Both fiber and Ethernet ports can be cascaded, the specific application method should be adjusted flexibly according to the practical situation. When the fiber or twisted pair is connected, corresponding LED indicator would light indicating the normal connection, please refer to Figure 1 for the specific connection method.

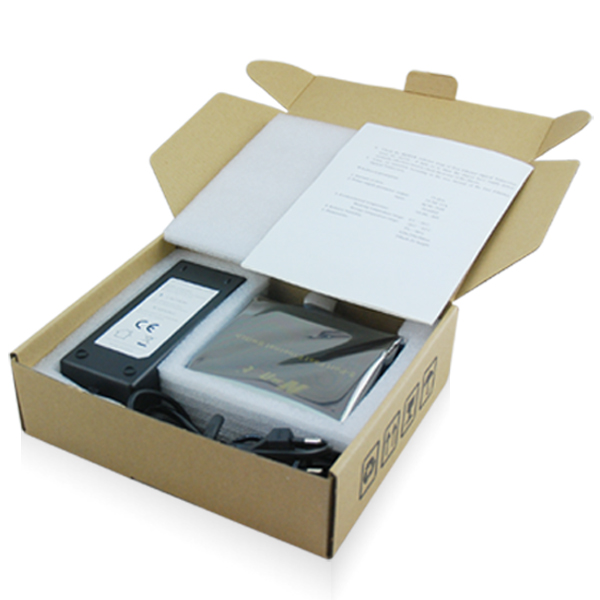

4 Ports Network Switch Package
