Full Gigabit 24 Ports Managed Ethernet Switch

N-net Full Gigabit 24 Ports Managed Ethernet Switch

NT-35G24F4GC Ethernet switch is a high-performance, network management optional 2L Ethernet all-optical switch. Network administrators can monitor the working state of the switch and network running status locally or remotely in real time, and manage the working state and working mode of all switching ports globally.Based on industrial network dedicated switching chip as the core, the main applicationof N-net L2 managed switch is to provide support for Ethernet two layer exchange for the construction of the campus network, or with the special software (optional, authentication and billing) for Ethernet access or cell broadband aggregation equipment. The task of a managed switch is to keep all network resources in good condition. Managed switch products provide a variety of network management methods such as Console based terminal control port, Web page and Telnet remote login network.This gigabit switch will greatly shorten the network the cycle and reduce the construction cost and maintenance cost, optical fiber transmission cost-effective access solutions.

10/100/1000M Network Switch Features

1. 24x 10/100Mbps downlink optical fiber Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports and 2x1000Mbps uplink SFP Ports or 4x 1000M Gigabit Ethernet COMBO ports
2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z
3. compatible with various Ethernet devices
4. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMP Snooping,
5. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
6. Store-and-forward mechanism is employed to avoid packet loss and error frames
7. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
8. Support IP/Port/Mac binding.
9. Jumbo frames support a maximum of 9.6K kilobtyes
10. Support enhanced management through WEB, CLI, SSH, SNMP.
11. Built-in 1U rack power supply series, easy installation

Instruction:

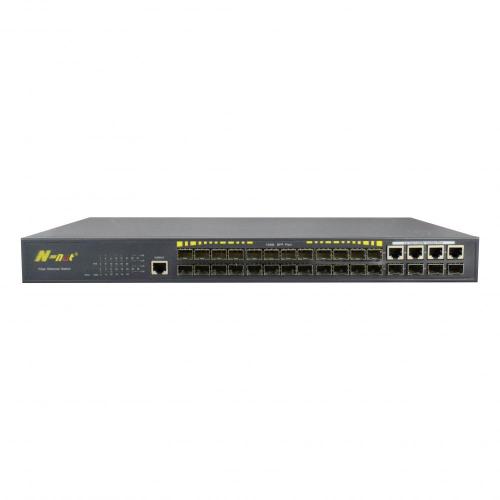

1. Front board have 33 ports, Provide 24x 10/100Mbps downlink fiber Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports or 2x 1000Mbps uplink SFP Ports; or 4x 1000M Gigabit Ethernet COMBO ports,and 1x

2. LED Indicator State:

Power:   1 green light indicates that the power normal work;

Ethernet: 28 green lights indicate that the Ethernet Link and Act

Ethernet: 28 green lights indicate that the Ethernet speed.

Installation step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

1. Fiber Switch                        1PCS

2. User Manual                        1PCS

◆ Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆ Use 24 network cables to connect 24 industrial switch with Ethernet switch's 1~24 fiber port;

◆ Use network cable to connect Ethernet switch`s UPLINK port with NVR or Other Device;

◆ Connect Ethernet switch with power adapter;

◆ Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆ Make sure every network device has power supply and work normally.

L2 Gigabit Ethernet Switch Application

Managed Network Switch for Expressway
