Ethernet Managed Gigabit Switch

N-net Ethernet Managed Gigabit Switch

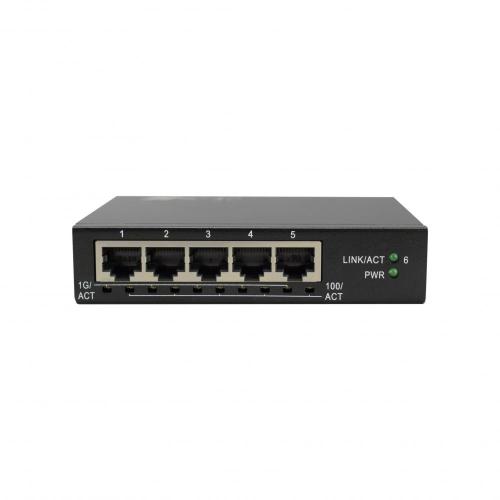

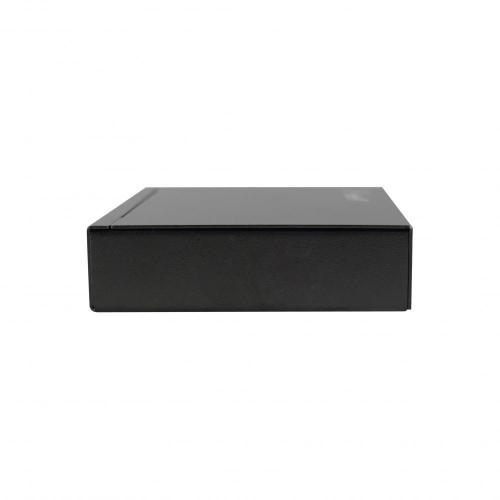

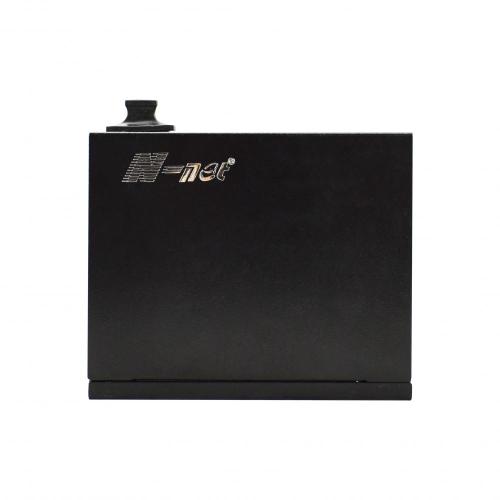

The NT-MG1500 is a 10/100/1000Mbps Web Smart Gigabit Ethernet Switch utilized a compact form factor that can be mounted in a 10/19-inch rack with optional rack-mounting kits or placed on desktop.Backboard bandwidth: determines the maximum connection bandwidth between each interface template and the switching engine. For efficient management, with its built-in Web-based management, the NT-MG1500 managed Ethernet switch offers an easy-to-use and configuration facility. Backboard bandwidth is the maximum amount of data that can be handled between the switch interface processor or interface card and the data bus.Backboard bandwidth marks the overall data exchange capacity of the switch. The unit is Gbps, also known as switching bandwidth. The backboard bandwidth of the general switch varies from several Gbps to hundreds Gbps.Via the WEB interface, NT-MG1500 can be programmed for basic switch management functions such as per port speed duplex settings, Port Trunking, VLAN, Port Mirroring, Rapid Spanning Tree, 802.1X network security authentication and Misc Configuration.The higher the backboard bandwidth of a switch, the more data it can process, but the higher the design cost. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control, to enhance bandwidth utilization

10/100/1000M Network Switch Features

1. Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab
2. 1000Base-T, IEEE 802.3z 1000Base-SX/LX Ethernet standard
3. Complies with IEEE802.3 at(PoE) or IEEE802.3 at(PoE+) PSE standard
4. 4-Ports 10/100/1000Mbps Gigabit Ethernet ports
5. 4-Ports IEEE802.3 at(PoE) or IEEE802.3 at(PoE+) PSE ports
6. 4-Ports PSE supply power line are PIN1, 2(+) and PIN3,6(-)
7. 1 mini-GBIC/SFP slots
8. Each Switching port supports auto-negotiation-10/20, 100/200 and 1000/2000Mbps supported
9. Auto-MDI/MDI-X detection on each RJ-45 port supports CSMA/CD protocol
10. Prevents packet loss with back pressure (Half-Duplex) and 802.3x PAUSE frame flow control (Full-Duplex)
11. 8K MAC address table, automatic source address learning and aging
12. 16Gbps switch fabric, non-blocking switch architecture
13. 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
14. 52 VDC PSE output voltage
15. Compatible with legacy pre-IEEE standard powered devices
16. Over-current protection and Under-current detection
17. Industry degree design and wide operating ranges (-20~70)

L2 Managed Switching

1. Supports Port-Based and 802.1Q VLAN function, up to 64 VLAN groups
2. IEEE 802.1w Rapid-Spanning Tree protocol supported
3. Link Aggregation supports static mode and LACP (IEEE 802.3ad) - up to 4
4. Trunk groups. Each trunk is maximum up to 8 ports

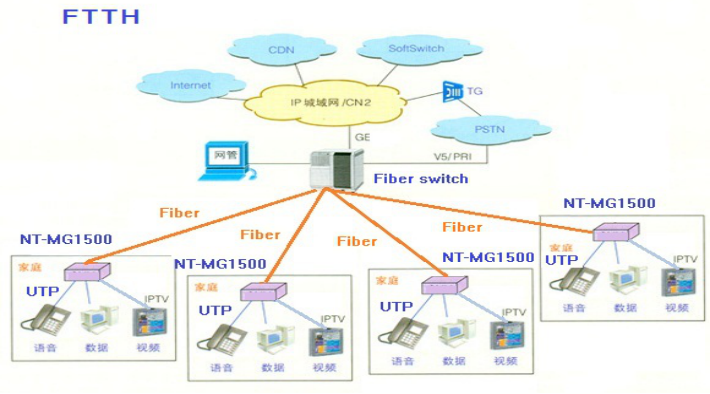

Managed Network Switch Application
