5 Ethernet Ports Gigabit PoE Switch

N-net 5 Ethernet Ports Gigabit PoE Switch

The NT-WG500-AF4 is a 5-port Ethernet switch providing 5X 10/100/1000BASE-T 802.3af/ at PoE copper ports, and one serves as an uplink port without power over Ethernet feature. This  PoE switch supports 60-watt PoE budget to drive up to 4 IEEE 802.3af (or 2 IEEE 802.3 at) compliant powered devices simultaneously. The PoE feature enables the NT-WG500-AF4 an efficient and cost-effective solution for SMB, SOHO and other similar fields to deploy the PoE network for wireless access points, IP-based surveillance cameras or IP phones anywhere easily and efficiently.

POE Switch Gigabit Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. POE switch Standard: IEEE802.3 Ethernet, IEEE802.3u Gigabit Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE
3. Automatic identification of direct and cross-line cables, compatible with various cards, switches, HUB and other Ethernet devices
4. Store-and-forward mechanism is employed to avoid packet loss and error frames
5. Support full-duplex flow control / half-duplex back pressure mode
6. Jumbo frames support a maximum of 9K bytes

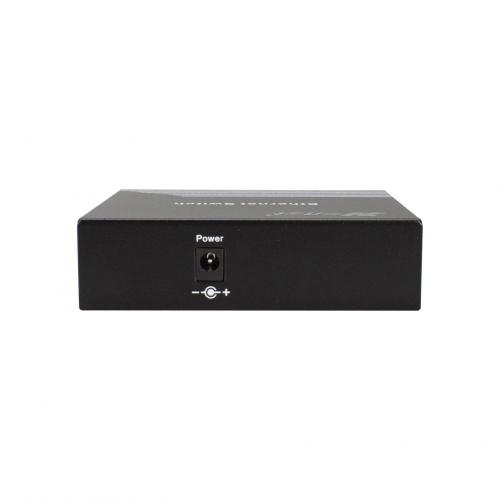

7. 52DC power input
8. -20 To 70 ℃ operating temperature to meet a variety of complex environments
9. Copper ports support ESD protection
10. Support PoE power supply up to maximum of 30W

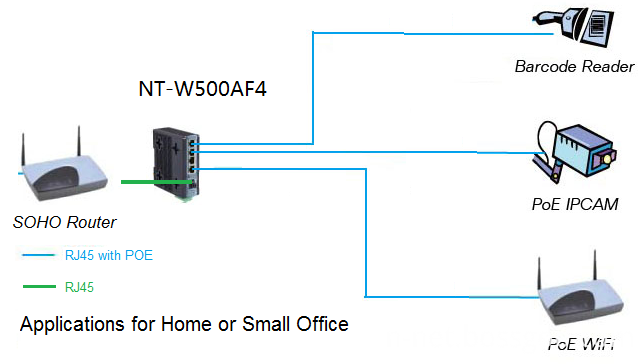

Gigabit Switch Application

4 Port POE Switch Package
