Layer 2 Gigabit Unmanaged POE Switch

Layer 2 Gigabit Unmanaged POE Switch

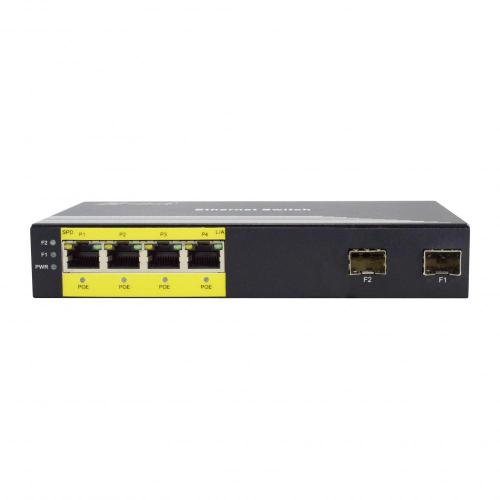

N-net NT-G2400-AF4 ethernet switch is more helpful for reliable assurance for connection between the surveillance system and outside network. As a gigabit poe switch, It greatly ensures the video & data that will not appear to get stuck and loss packet during transmission. The uplink port of this gigabit ethernet switch is 2 fiber ports, which supports rapid transmission. There are 4 power over ethernet ports for devices that are far from power outlets and users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves.

POE Switch Gigabit Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets

2. Standard Compliance: IEEE802.3 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;  IEEE802.3x Flow Control; IEEE802.3af PoE

3. 10/100/1000M copper ports automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices

4. Store-and-forward mechanism is employed to avoid packet loss and error frames

5. Support full-duplex flow control / half-duplex back pressure mode

6. Maximum of 9720 bytes Jumbo frame supported

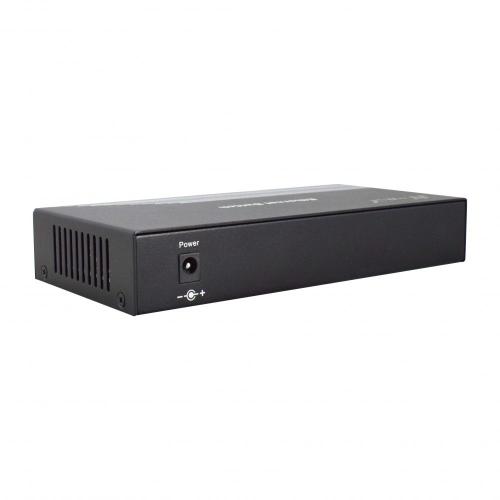

7. 52V DC power input

8. -20 To 70 ℃ operating temperature to meet a variety of complex environments

9. Copper ports support ESD protection

10. Support PoE power supply up to maximum of 30W

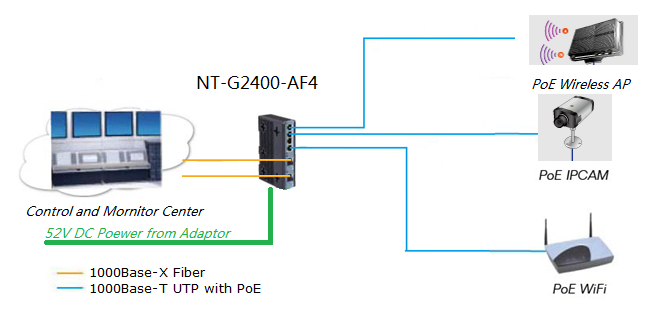

POE Switch 4 Ports Application

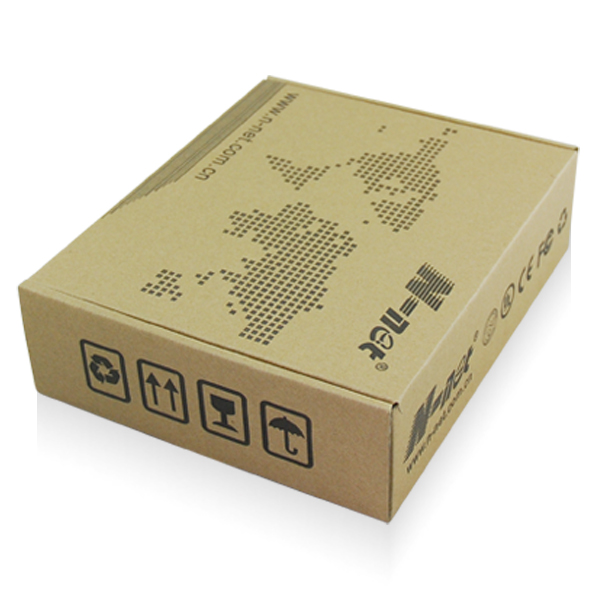

Network Switch Package
