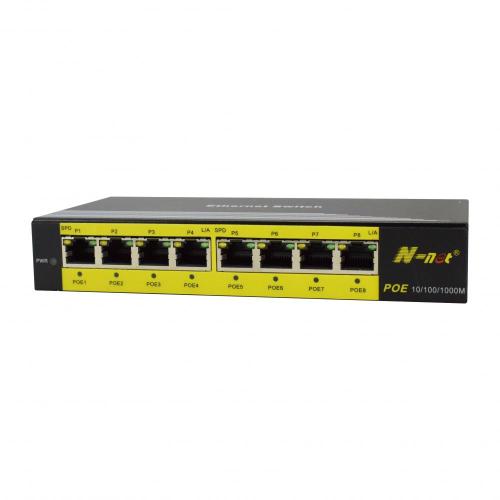

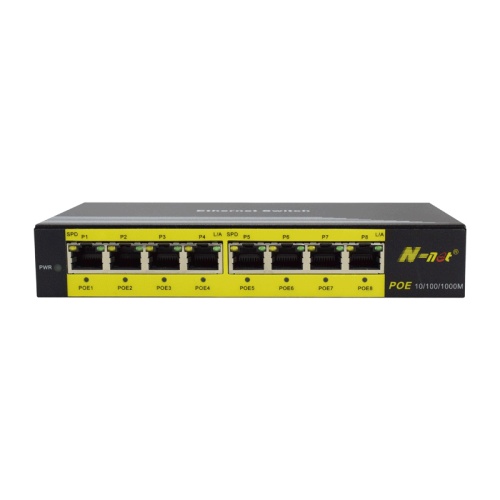

8 Ports Gigabit Ethernet POE Switch 802.3 AF/AT
N-net NT-WG800-AF8 is an unmanaged Ethernet switch designed for Gigabit Ethernet access and PoE applications. This gigabit POE switch provides eight gigabit Ethernet POE ports and every port can be used as a uplink ports. The eight downlink ports support 802.3af/at standard and feature Max. 30W PoE power output of single port, total power budget 130W. The device supports one-key VLAN which isolates the communication between downlink and uplink ports. NT-WG800-AF8 poe switch can be widely used in security surveillance, hotels, schools, SMB engineering and other occasions.
POE Switch Gigabit 8 Ports Features
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3x Flow Control, IEEE802.3af PoE
- 10/100/1000M automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
- Store-and-forward mechanism is employed to avoid packet loss and error frames
- Support full-duplex flow control / half-duplex back pressure mode
- Maximum of 9216 bytes Jumbo frame supported
- 52V DC power input
- -20 To 70 ℃ operating temperature to meet a variety of complex environments
- Copper ports support ESD protection
- Support PoE power supply up to maximum of 15W
Specifications
| Item |
Gigabit Ethernet POE Switch |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3x Flow Control, IEEE802.3af PoE |
|
Transmission distance |
Category-5 twisted pairs: 100m |
|
Port |
Eight RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B |
|
Operation mode |
Store and Forward |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Address table |
8K-entry look-up table with auto-learning function |
|
Buffer space |
Built in 1Mb SRAM for data buffer |
|
BER |
<10-9 |
|
MTBF |
50,000 hours |
|
LED indicator |
Power Supply : PWR (1~8)UTP Port: POE, SPD, L/A |
|
Power supply |
Power Input Range: 52VDC, Power Interface: DC Power Jack |
|
Power Requirement |
52VDC @ 2.5A 130W |
|
Power consumption |
<5W |
|
PoE Power Pins |
RJ45: Mode A -- pins 1 and 2 for PoE(+); 3 and 6 for PoE(-)(Default) Mode B -- pins 4 and 5 for PoE(+); 7 and 8 for PoE(-)(Optional) |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40~75ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
170.50mm (W)×80.50mm (D)×30.00mm (H) |
|
Weight |
|

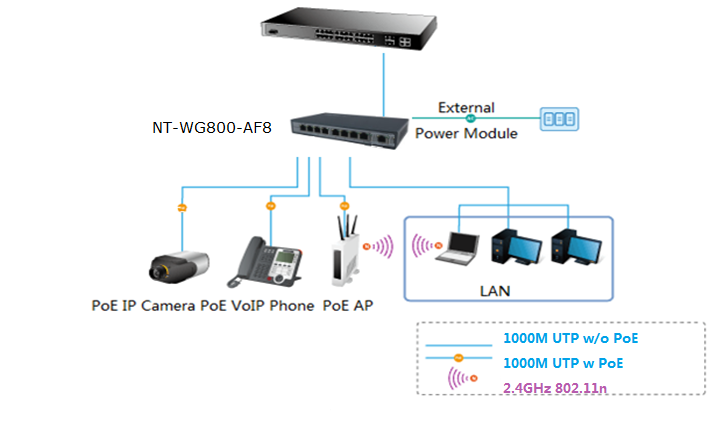

8 Ports POE Ethernet Switch Application
POE Switch 8 Ports Package
