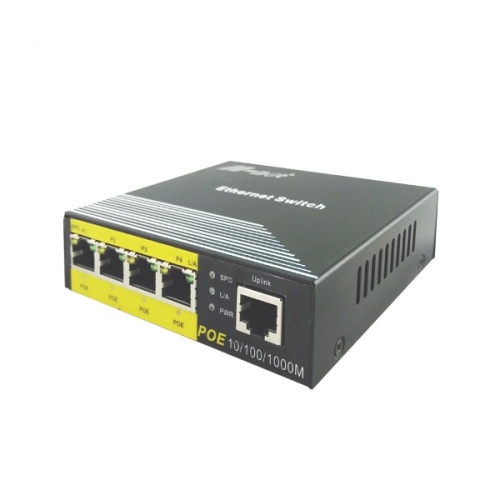

Gigabit Ethernet POE Switch 4 Ports Unmanaged
N-net NT-WG500-AF4 is a gigabit poe switch that all 4 downlink ports are with power over ethernet capality. For easier to install, N-net designed this 4-Port POE Switch for desktop and wall mounting type. For a steady and safe using, N-net poe switches are with intelligent poe chip that can detect whether your devices are PD devices or no, and to protect your devices from destroying. This 4 port poe switch is with large cache space so that will not lose data.
POE Switch Gigabit Features
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- POE switch Standard: IEEE802.3 Ethernet, IEEE802.3u Gigabit Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE
- Automatic identification of direct and cross-line cables, compatible with various cards, switches, HUB and other Ethernet devices
- Store-and-forward mechanism is employed to avoid packet loss and error frames
- Support full-duplex flow control / half-duplex back pressure mode
- Jumbo frames support a maximum of 9K bytes
- 52DC power input
- -20 To 70 ℃ operating temperature to meet a variety of complex environments
- Copper ports support ESD protection
- Support PoE power supply up to maximum of 30W
Specifications
|
Item |
Gigabit 4 Ports POE Ethernet Switch |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3 Ethernet, IEEE802.3u Gigabit Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE |
|
Wavelength |
1310nm/1550nm |
|
Transmission distance |
Category-5 twisted pairs: 100m |
|
Port |
5X RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B |
|
Conversion means |
Store and Forward |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Address table |
8K-entry look-up table with auto-learning function |
|
Buffer space |
Built in 1Mb SRAM for data buffer |
|
BER |
<10-9 |
|
MTBF |
100000hours |
|
LED indicator |
Power interface: PWR (System power supply indicator) Copper port (1~4): PoE (PoE supply indicator) Copper port (1~4), UPLINK: SPD (Data transfer rate indicator) Copper port (1~4), UPLINK: L/A(Link and active status indicator) |
|
Power supply |
Power Input Range: 48VDC, Power Interface: DC Power Jack |
|
Power Requirement |
52VDC,1.25A 65W |
|
PoE pinout of RJ45 |
1/2 (+) , 3/6 (-) |
|
Power consumption |
<5W |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-20~70ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
110.20mm (W)×95.70mm (D)×30.00mm (H) |
|
Weight |
|
Application
4 Port POE Switch Package
