mini GEPON ONU terminal device
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | Shenzhen |
Description:

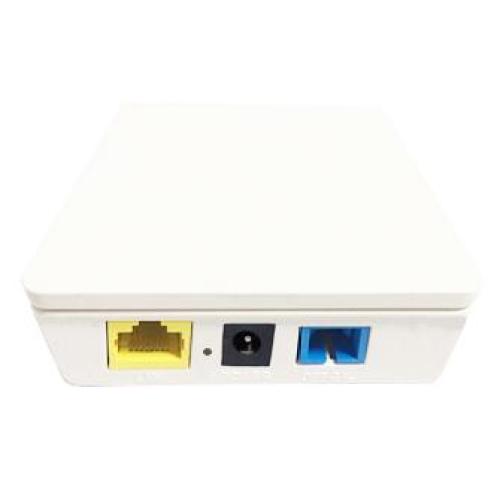

NT-EPU801(SFU) is a mini GEPON ONU terminal device , which applies to pure broadband access.It adopts mini-type compact structure design with high-integration and can provide 1 GE(RJ45)interfaces. Supports the technology of layer 3 router function with PPPOE/DHCP/Static IP,and it`s easy to maintenance and manage.It can be applied to FTTH/FTTP access application for resident and business users.and it is fully compliant to technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V3.1).
GPON (Gigabit Passive Optical Network) This is the development of the BPON standard. GPON supports higher rates, enhanced security and optional layer 2 protocols (ATM, GEM, Ethernet). In mid-2008, Fryson Telecom had installed 800,000 lines. British Telecom (British Telecom) and American Telephone and Telegraph Company (AT & T) are conducting advanced trials. Other companies such as Independent Fiber Networks Ltd. are working with service providers such as See the Light to provide higher-speed GPON connections and fiber to the home.
Feature:
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Support triple churning encryption request
Support DBA reporting mechanism request
Support OAM remote configuration maintenance function
Support the remote upgrade and download
Support status detection and fault report
Support to configure the work mode at the user port.
Support data encryption and decryption
Support 802.1Q VLAN
Support rich QinQ VLAN functions and IGMP Snooping
Support traffic rule to modify the related priority.
Support LED indication
Support to restore the factory settings
Support the remote reset and reboot
Support dying gasp outage alarm
Fully compatibility with OLT based on ZTE chipset.
Applications:
Data services
Voice services
Video services
Monitoring service
FTTH / FTTB / FTTO / FTTP
Performance Specification:
|
Technical items |
Description |
|
Optical property |
|
|
Upstream PON interface |
1 EPON interface, SC single-mode/single-fibre, symmetric 1.25 Gbps |
|
Wavelength |
Tx 1310nm, Rx 1490nm |
|
Optical output power |
-1~+4dBm |
|
Receiving sensitivity |
<-26dBm |
|
Farthest distance |
20km between OLT and ONU |
|
Optical interface |
SC/UPC connector |
|
Downstream LAN interface |
1*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
|
Ethernet function |
Support IEEE802.1Q VLAN |
|
Support speed rate inhibition of broadcast packet at ONU |
|
|
IEEE 802.3X flow control |
|
|
Support 16 multicast addresses at each LAN port |
|
|
Security strategy |
Support AES-128,data encryption for both upstream and downstream Support dynamic update of key
|
|
Management maintenance |
Centralized OLT management based on OAM |
|
WEB,CLI |
|
|
Upgrade software remotely |
|
|
Hardware information |
|
|
Indicators |
4 indicators, for status of power supply, PON port and 1 Giga-Ethernet port. |
|
DC power supply |
+12V, external AC-DC power adaptor |
|
Chipset |
ZTE chipset |
|
Power switch |
1 |
|
Power consumption |
≤2.5W |
|
Operating condition |
Operating temp: -5~+55℃ |
|
Storing condition |
Storing temp: -30~+60℃ |
|
Dimension |
120mm*100mm*30mm(length*width*height) |
|
Net weight |
0.24Kg |

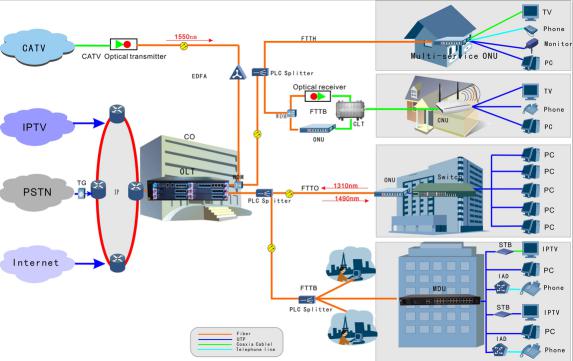

Solutions:
