10/100M POE+ Switch 24 Ports Unmanaged

N-net 10/100M 10/100M POE+ Switch 24 Ports Unmanaged

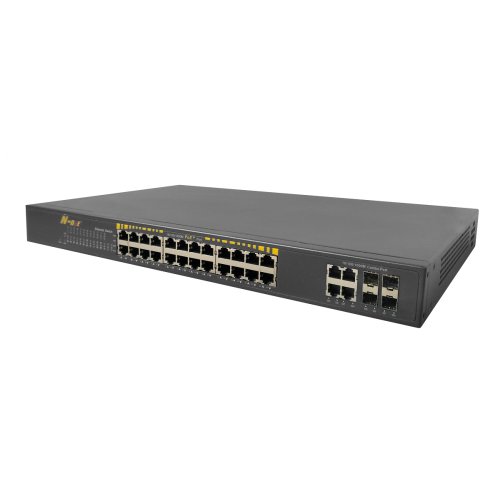

NT-2924T4GC-AF24 is a umanaged 10/100M 24 ports POE switch. It supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 440W to power any 802.3at or 802.3af compliant power device. This fast Ethernet Poe switch is an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the N-net power over ethernet switch is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.

Poe Switch 24 Ports Features

  1. 24x 10/100Mbps downlink PoE Ethernet Ports, 4x 10/100/1000Mbps uplink Ethernet Ports and 4x1000Mbps uplink SFP Ports ,or 4x 1000M Gigabit Ethernet COMBO ports

  2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3af/at standard

  3. Supports port auto-flip (Auto MDI/ MDIX)

  4. Each of 24 ports all support IEEE802.3af/at

  5. Maximum power per port: 30W

  6. Maximum PoE power: 440W (Port 1 to Port 24)

  7. Adopts store-and-forward architecture

  8. Built-in 1U rack power supply series, easy installation

N-net POE Switch Advantages

Smart PSE chipset protect the PD devices from burning

Smart power management to prolong lifetime of the switch

4KV EFT and 6KV ESD protection

Big buffer chipset avoid switch crash, packet loss and other problems.

Big power budget ensure power supply

Unmanaged 24 Ports POE Switch Applications

24 Ports Ethernet Switch Package
