5-port unmanaged PoE switch

Overview

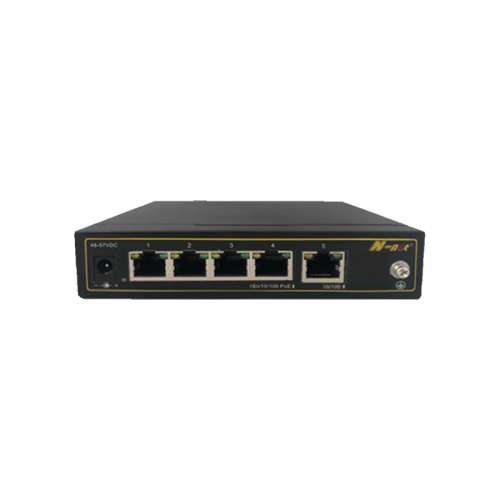

NC2041PE is a 5-port PoE unmanaged switch that supports up to 4*10/100M PoE ports and 1*10/100M uplink ports. 4*10/100M ports support PoE+, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W, the maximum whole machine power is 60W.

The domestic production of 4-pair four-line power supply is extremely rare, so prospective operators should upgrade the technology from POE+ to POH as soon as possible! NC2041PE provides three modes, Extend, Default and VLAN, to adapt to various complex environments.Detection: initially, the POE switch outputs a small voltage on the port until it detects that the cable terminal is connected to a receiving device that supports ieee 802.3af. At the same time, support PoE auto-check function, which is specially designed to solve the problems of equipment frozen.PD terminal device classification: after PD is detected, POE switch may classify PD devices and evaluate the power loss required by this PD device. It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.Starting power supply: during a configurable time (usually less than 15 seconds) startup period, the POE switch starts to supply power to the PD device from the low voltage until it provides 48V dc power supply.

NC2041PE has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection. NC2041PE supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.

Features

• With 4*10/100M PoE downlink ports and 1*10/100M uplink ports.
• The maximum PoE power of single port is 30W, and the maximum PoE power of the whole machine is 60W.
• Provides three modes of Extend, Default and VLAN to adapt to various complex environments.
• Support PoE auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
• 6KV surge protection, 6KV contact / 8KV air ESD protection.
