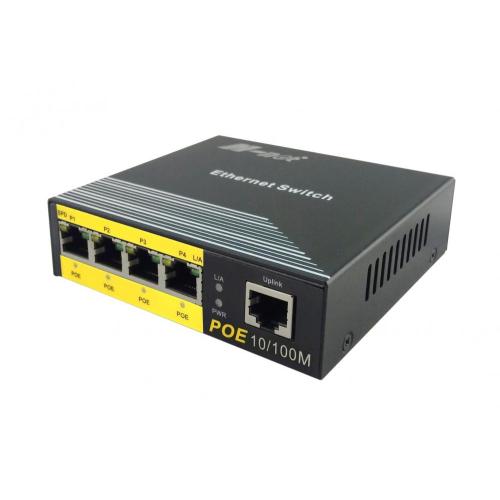

N-net Unmanaged Fast Ethernet POE Switch 5 Ports
N-net NT-W500-AF4 is a 4 ports 10/100M poe switch with 802.3at/af Power over Ethernet + 1-port Fast Ethernet Switch. This poe switch can extend distance up to 250m, which is the first choice for SOHO and SMB. NT-W500 is a 10/100M poe switch that with full ethernet port, so that you don't need to rebuild wires --lower cost and more convenient. From its appearance, you can easily to know the working situation of this 4 ports ethernet poe switch: power lights,link lights, Fx and TX lights ect.
4-Port PoE Switch Features
- Built-in efficient switching core to implement flow control and reduce broadcast packets
- Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE
- 10/100Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
- Store-and-forward mechanism is employed to avoid packet loss and error frames
- Support full-duplex flow control / half-duplex back pressure mode
- Jumbo frames support a maximum of 1552 bytes
- 52 DC power input
- -20 To 70 ℃ operating temperature to meet a variety of complex environments
- Copper ports support ESD protection
- Support PoE power supply up to maximum of 30W
Ethernet PoE switch Specifications
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode:500km Single fiber single mode: 20/40/60/80km Dual-fiber single mode:20/40/60/80/100km Category-5 twisted pairs: 100m |
|
Port |
5 RJ45 ports: Connecting STP/UTP category-5 twisted pairs, EIA568A/B |
|
Conversion means |
Store and Forward |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
Power Supply : PWR (1~4)UTP Port: POE, L/A |
|
Power supply |
Power Input Range: 48VDC, Power Interface: DC Power Jack |
|
Power Requirement |
52VDC @ 1.25A 65W |
|
Power consumption |
<5W |
|
Operating temperature |
-20~70ºC |
|
Operating humidity |
5%~90% non-condensing |
|
Storage Temperature |
-20~70ºC |
|
Storage humidity |
5%~90% non-condensing |
|
Dimensions |
110.20mm (W)×95.70mm (D)×30.00mm (H) |
|
Weight |
|
