10/100M Ethernet Over 2 Wire Converter

N-net 10/100M Ethernet Over 2 Wire Converter

The system can provide 10Mbit / s full-duplex bandwidth for each user. Passive EOC access technology has a relatively small workload for the transformation of the existing cable TV network system. No additional active equipment is required. It is easy to install and use, and has low operation and maintenance costs. It is an economic user access technology.

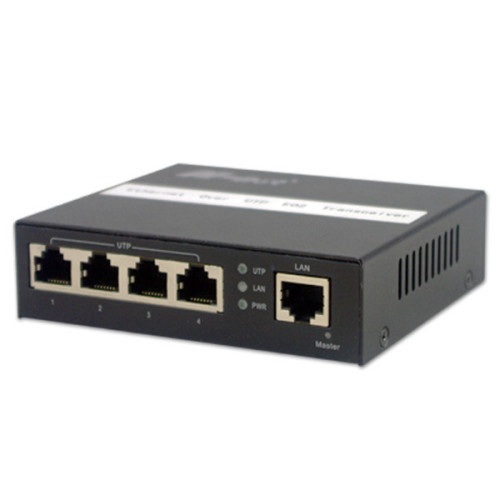

NT-ENU1400 UTP Ethernet converter can transmit over telephone line, Ethernet cable, and twisted pair. The UTP cable converter provided with excellent lightning protection and anti-interference capacity. In the real work environment, the network bandwidth could reach up to 60Mbps.

Active EOC is a user access technology that uses active equipment in the vicinity of user corridors to composite cable TV signals and digital signals into a coaxial cable network through QAM / FDQAM modulation, multi-carrier OFDM, etc. for transmission.

With the Ethernet extended to 750meter, it has enlarged the Ethernet network application area, cutting down the project cost by using Cat5e or Cat6 cable.

POE over UTP Cable Extender Features

1. Modulation frequency: 2 MHz-28 MHz
2. Modulation method: OFDM
3. Encryption: AES128-bit encryption
4. Networking: One Master and 7 Slaves
5. Protocol:IEEE802.3/u, 10Base-T, 100Base-TX, IEEE802.1Q VLAN, IEEE802.3af/at
6. Support Auto-sensation of MDI/ MDIX at Ethernet port, compatible with NIC, switch and HUB etc.
7. Support up to 1522Bytes data packet
8. Support Store and forward working mode; backpressure on Half-Duplex and flow control Full-Duplex.
9. Power supply range: DC 12V-48V;
10. Working temperature: -20-70℃
11. Support Ethernet ESD protection and EFT
12. POE (15.4W) and POE+ (25.5W) supported

Ethernet And Power Over UTP Cable Converter Application

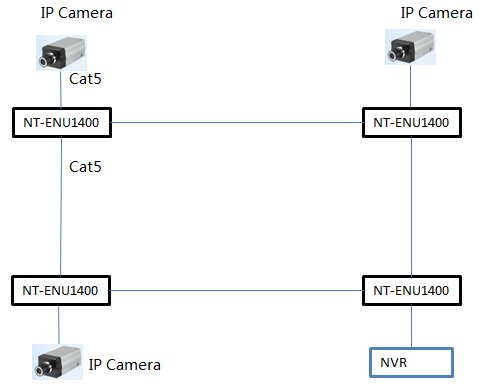

1.  Ring solution

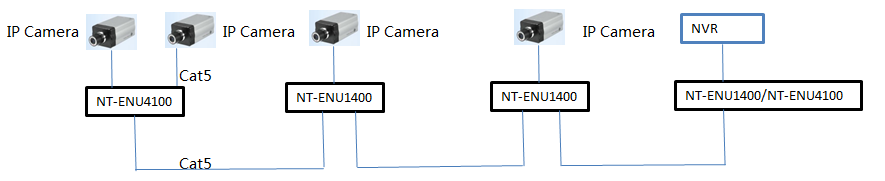

2. Cascading solution

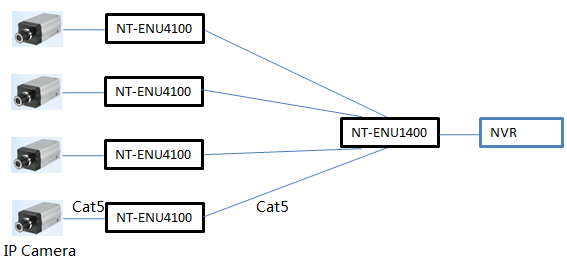

3. Convergence solution

UTP Cable Extender ( Power over Ethernet Series) Order information
