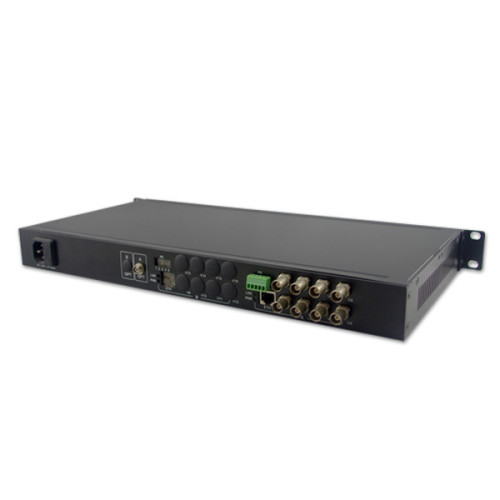

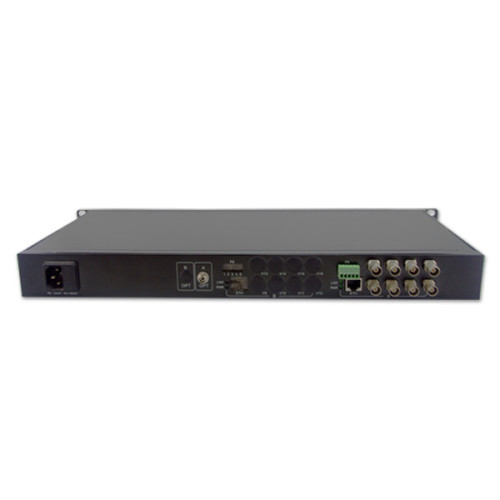

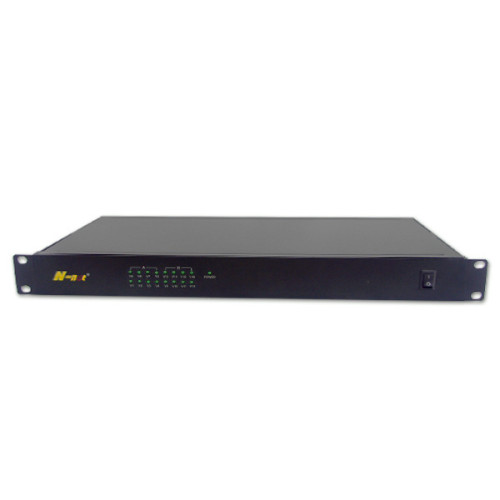

1 U 8 channel video analog video converter
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pc/day |
| Supply Ability: | 5000PCS around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8517622100 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Yantian |
Applications
CCTV networks
At the same time, the digital circuit inside the video converter performs D / A conversion on the signal to make it a PCM. After many times of processing, the data stream is sent to the A / D conversion matrix circuit, and then sent to the buffer after conversion, thereby outputting a complete VGA signal.
video conferencing
Video optical transceiver is a device that converts 1-to-multiple analog video signals into optical signals and transmits them through optical fiber media through various encodings. Since video signals are converted into optical signals, two technologies are used: analog conversion and digital conversion. So the video optical transceiver is divided into analog optical transceiver and digital optical transceiver.
Industrial monitoring systems
Distance learning
Features and benefits
Uncompressed 8 bit video digital sampling, High-speed synchronous digital transmission technology
Modular structure design(audio card and data card for optional configuration)
Super optical dynamic range, no adjustment needed
Status indication for power supply, optical signal and video
No electromagnetic interference, radio frequency interference and ground current
Safe transmission guaranteed under poor electromagnetic environmen
BNC video connector
FC optical connector
Video DC recovery
Maximum tolerable link loss for single mode single fiber is 18db
Any PAL / NTS VIDIO or S-VIDEO video signal input, after encoding and formatting inside the decoding chip, the RGB signal is automatically processed and output. At the same time, the digital circuit inside the video converter performs D / A conversion on the signal to make it PCM The data stream is then sent to the A / D conversion matrix circuit after multiple processing, and then sent to the buffer after conversion, thereby outputting a complete VGA signal.

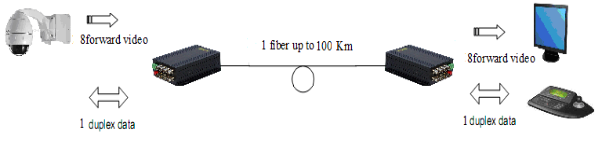

Typical Application:
Technical indicators
Video characteristic
Video channel: 8 channel
Video input/output impedance: BNC75Ω unbalanced interface
Video input/output voltage: Typical peak-peak value 1Vp-p
Video bandwidth: 6.5MHz
Video digital bit width: 8 bit
Differential gain: <1.3% (typical value)
Differential phase: <1.3°(typical value)
SNR: >63dB
Data interface
Number of data channels: 1 channel
Physical interface: The industry standard connecting terminal
RS232 rate: DC-115.2Kbps
RS422/485 rate: DC-115.2Kbps
RS485 distance: 0-1200m
Physical protocol: Transparent support of RS232/485/422/Manchester/Biphase protocol
Optical interface
Physical interface: FC/PC
Fiber type: single-mode fiber, single fiber
Transmission distance: single mode 20Km
Power supply
Input voltage: AC220/DC+5V
Electromagnetic compatibility
Radiation: EN50081-1, EN55022-B, CE, FCC
Magnetic capacity: EN50130-4, EN50028-1
Physical characteristic
Operating temperature: -25°C ~ +75°C
Humidity: 0~95% (no condensation)
Induction: EN50130-5, 1995
Tidal fever: BS2011
Dimension: 174×110×47mm (BNC head and installation edge not included)
