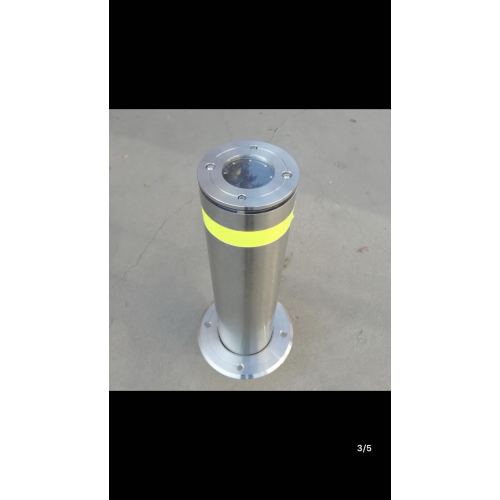

Dia. 133mm*Thickness 3mm*600(H) Block bollards

Block Bollards

(Model#TD-TAA219)

Technical Parameters:

1.System control: electro-hydraulic
2. Power supply: 220V
3. System power (w): 300W
4. When rising: 3-5S
5. Fall time: 3-4S
6. Working temperature: -45 ° C-75 ° C
7.Bearing pressure ≥100000kg
8. Warning method: yellow reflective film

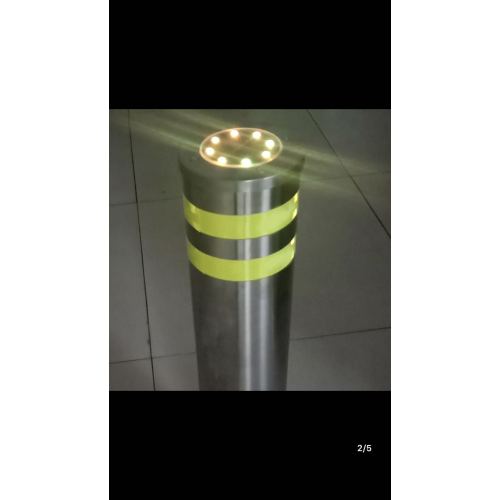

9. Warning light: ring LED warning light
10. Overall material: In addition to the motor, most of the accessories (such as the case buried in the ground,
Flange parts, etc.) are made of 304 stainless steel. Greatly enhance equipment life.

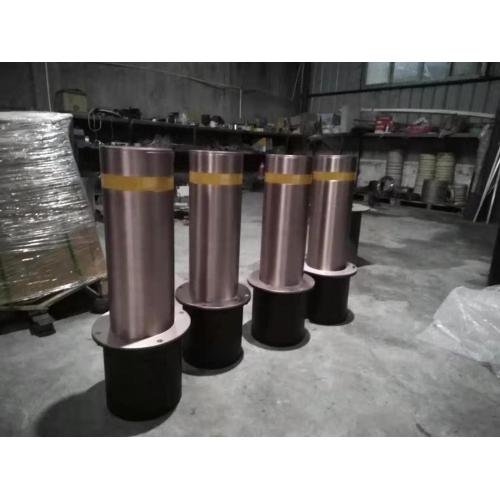

11.Specification of lifting column case (mm): 325 * 1100mm
12. Lifting height (mm): ≥600mm
I
13. Lifting column diameter (mm): ≥219mm;
14. Thickness of lifting cylinder (mm): ≥6mm
15. Weight (kg): ≥120kg.
16. Emergency device: In case of power failure or equipment damage, the column can be lowered through the 12V battery conduction solenoid valve.
17, 6mm single bumper level ≥ 180000 Joules. (It can effectively intercept a 1.5T vehicle at 50km / h and the equipment can be used normally.

Control method

Standard configuration: remote control + manual button
The following functions can be added according to user requirements:
A. Mobile phone control: Install APP on the mobile phone and use the mobile phone to remotely control.
B. Swipe control: add a card reader to automatically control the lifting of the lifting column by swiping the card.
C. License plate recognition device control: It is connected with the license plate recognition device to realize multi-functional and intelligent control.
D. Computer control: It can be connected with the computer management system or toll collection system, and can be connected to the buried system and toll collection system.
E. Linkage of barriers and lifting columns: Add access control for barriers (car blockers) to achieve linkage of barriers and access control with lifting columns.

Product performance and characteristics:

1. Compact and unique structure, large bearing capacity, stable movement and extremely low noise;
2. Adopting international leading electro-hydraulic drive technology, the whole system has high safety, reliability and stability;
3. The hydraulic unit adopts the unique design of pressure helicopter, with excellent performance, leading the same field at home and abroad;
4. Economical, environmental protection and energy saving, low consumption, lower failure rate, longer service life and reduced maintenance costs;
5. In the event of a power failure, the column can be lowered to a level with the ground through the 12V emergency power supply to ensure that the vehicle is passing
6. Independent integrated control, stable and reliable performance, convenient for quick installation and maintenance. There are many different control modes to meet the different needs of different users in terms of functions;
7. Except for the motor, most of the accessories (such as the underground casing and flange parts) are made of 304 stainless steel. Greatly enhance equipment life and save maintenance costs.
