150W LED Flood light

USD77.88

1-499 Piece/Pieces
USD75.88

500-4999 Piece/Pieces
USD74.88

5000-49999 Piece/Pieces
USD73.88

≥50000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Western Union

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7-10 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Yantian, Shekou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	50000pcs
Supply Ability:	5000pcs/month
Payment Type:	L/C,T/T,D/P,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT
Certificate:	CE RoHS
HS Code:	9405409000
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Yantian,Shekou

Product Description

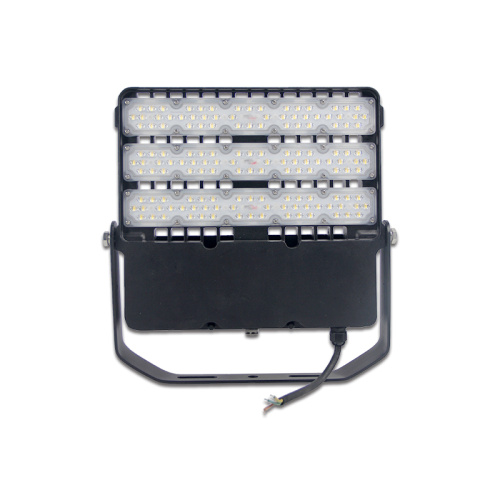

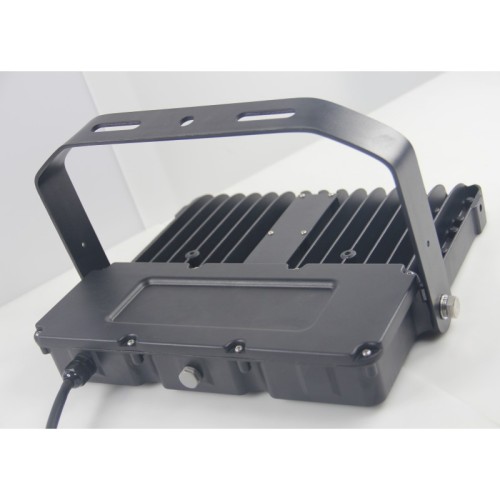

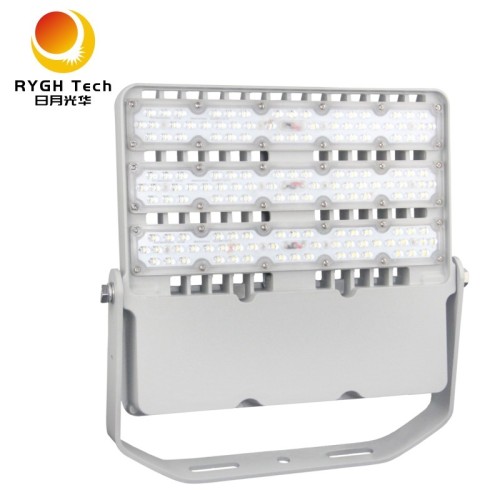

150W LED Flood Light

Advantage:
1. Patent privat mould, integrated die-casting AL.
2. High efficiency, 120lm/W 150lm/W available.
3. Glare free lens, lens for 48pcs LED: 30°/ 60°/ 90°/ 80*140°, lens for 22*3/22*4pcs LED:60°/90°/80*150°.
4. 0/1-10V dimmable, time control, daylight sensor available.
5. Modular combination available.

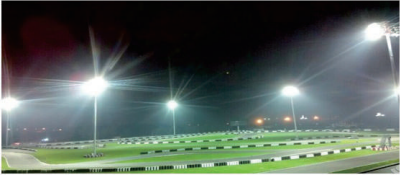

Application
* Billboard
* Road
* Bribge and culvert
* Square
* Building

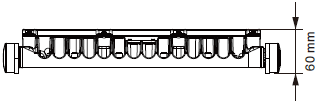

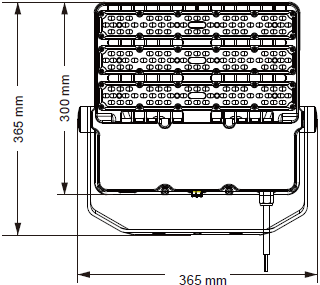

Dimension (Unit: mm)

A:Technical Parameter

Item No.	FDL-S1-150W
Lamp Size	36536560mm
Voltage	AC100V-277V 50/60Hz
Power	150W
LED Type	EMC 5050
LED Quantity	144pcs
Luminous Flux	22500LM ±5%
Color Temperature	Warm white 2800-3500K
	Neutral white 3800-4500K
	Cool white 5500-6500K
Beam Aangle	30° / 60° / 90° / 80*140°
Color Rendering lndex(CRI)	Ra>80
LED Luminous Eiffciency	150lm/W
Power Supply Effciency	>90%
Power Factor(PF)	>0.9
Total Harmonic Distortion(THO)	≤15%
IP Rank	IP66
Net Weight	5kg
Certificate	CE.ROHS.CB.SAA

B:Mechanical Specifications

LED Driver	MEANWELL(ELG-150-48A)
Housing Processing	Die-Casting
Material	ADC12

C:Environmental

Temperature Range Operating	-40℃~50℃
Humidity Range Operating	10%~90%
Temperature Range Storage	-40℃~-70℃
Humidity Range Storage	10%~90%

LUMINOUS INTENSITY DISTRIBOTION

INSTAIIATION

● With support frame
Fix the bracket on the wall by screws and then adjust the lamp body to proper orientation.

Warranty

5-year warranty since the date of purchase is offered for all LED Tunnel Light .
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. RYGH will not provide paid maintenance service under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
