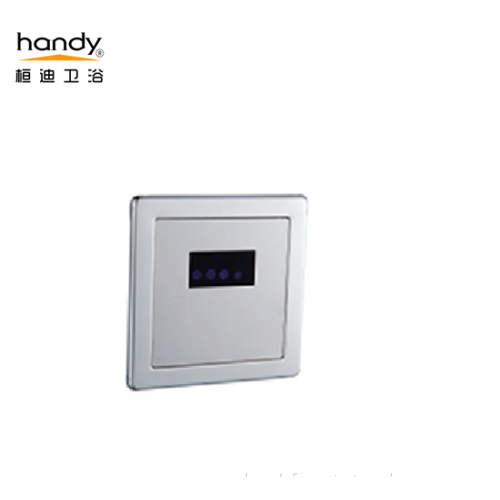

Automatic Inductive Flush Valve
Automatic Toilet Flush Valve,conceal wall-mounted installation, safe and easy automatic sensor inductive water discharge, stainless steel cover.Public Toilet Flush Valves, dual inductive flushing method, a germ free, odor free, and automated environment is created.The hands-free feature can keep you free from bacteria infections, especially in busy rest rooms.
Description of the Automatic Flush Valve
Name: Automatic flush valve
Model No.: HN-7L27
Product Features:
- Electronic flush valve with infrared induction principle for "hands free" operation
-
Adopt 2 times flushing water function design, sensitivity 100%, non-touch, flushing automatically.
-
Valve automatically switches to water conservation mode during periods of heavy usage.
-
Sensor &electronic controls are fully enclosed and water resistant.
- Automatically flushes after 24 hours of non-use to maintain trap seal.
-
Low battery indicator.
-
Factory-installed 6V lithium battery included.
-
Battery can be changed without turning off the water.
-
Guarantee time: 1 year
Technical specification
|
Power |
DC 6V (#7 lithium battery) |
|
Power consumption in static |
0.5MW / ＜2W |
|
Detection Zone |
Factory setting 50cm |
|
Water pressure |
0.05Mpa – 0.8Mpa |
|
Ambient temperature |
0℃ - 60℃ |
|
Diameter of inlet pipe |
G1/2 |
How it is working:
When people closed to the sensor, about 50cm in front of this product, it accepts detection induction, automatically flush after 2 seconds, 3-second flushing delay first time, 7-second flushing delay second time.
Fields of applications: Install on public toilet Flush Valve.Flusher Valves for Commercial Appliance.
Service conditions:
1) The working pressure of the product is 0.05MPa-0.8MPa
2) The working temperature is more than 0°
Attention before installation
1. Remove the impurities from water pipe, then connected to the inlet pipe of the machine.
2. Don`t erect it in the place under direct sunshine to avoid sensor performance degradation.
3. Don`t using non processing water or containing impurities water to prevent water flow from being affected.
4. Don`t water on the machine directly.
5. Because the infrared induction sensor complex, different clothes color, there is difference on induction distance, black is the nearest, white is the farthest.
6. There is a strainer in the inlet place. If flow become small, please turn off the adjust switch, take out strainer, clean and re-install it.
