AC/DC led transformer with UL approval

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 10 Days

Transportation:: Ocean, Air, EXPRESS

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000pcs/day
Supply Ability:	10000pcs/day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	EXW
Certificate:	ISO9001
HS Code:	85044014
Transportation:	Ocean,Air,EXPRESS
Port:	Shenzhen

Product Description

AC/DC led transformer with UL approval

Part Number: led driver 36V 1A AC/DC transformer with UL approval

led driver 36V 1A

Constant Voltage:

Model No.	DR-CV-36
Input Voltage Range	200-240V/AC&90-130V/AC
AC Frequency	48-62Hz
output model	constant voltage.constant current
output current	1A/
no load voltage	36V.
on load voltage	36V/
output power	36w
power factory	>0.95
efficiency	80%-86%
dimension	102*31mm

led driver 36V 1A

Trade Terms

1. Payment: T/T, Western Union and paypal;

2. Production lead time :500PCS: about 10 workdays, 1000PCS: about 15 workdays;

3. Sample can be delivered within 3days;

4. Shipping freight are quoted under your requests;

5. Shipping port: Shenzhen, Mainland China;

6. Discounts are offered based on order quantities;

7. MOQ: 1 pcs.

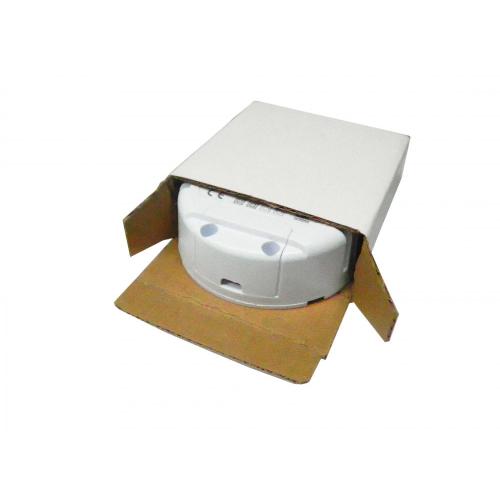

Packaging & Shipping(led driver 36V 1A)
1. Shipping freight are quoted under your requests;
2. Shipping port: Shenzhen, Mainland China;
3. Bubble bag ,inner box,and carton etc,
Neutral Package, or customer color box package upon requirements.

Packaging

Protection:

² Short circuit / over current / over voltage/ Over load/ Over temperature

Tips:

1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product

2. Do not short circuit.

3.Please refer to the instruction manual before use.

4. If not sure how to use the product,please contact us before use.

Our product list

Constant Current

Model No.	DR-CC-12	DR-CC-20	DR-CC-30	DR-CC-40	DR-CC-60	DR-CC-80
Input Voltage Range	100-240VAC	100-240VAC	100-240VAC	100-240VAC	100-240VAC	100-240VAC
AC Frequency	48-62Hz	48-62Hz	48-62Hz	48-62Hz	48-62Hz	48-62Hz
Output Mode	constant current	constant current	constant current	constant current	constant current	constant current
Output Current (mA)	350&500 &700	500&700 &900	700&900 &1200	700&900& 1200&1500	900&1200& 1500&1800	1060&1450& 1860&2280
Output voltage (VDC)	42&30&22	48&34&26	51&40&30	68&53&40&30	66&50&40&34	75&55&43&35
Output Power	12w	20w	30w	40w	60w	80w
Power Factor	0.95	0.95	0.95	0.95	0.95	0.95
Efficiency	80%-86%	80%-86%	80%-86%	80%-86%	80%-86%	80%-86%
Dimensions (mm)	943617	1074022	1324423	1324428	1705031	1906529
Operating Temperature		-25~+55°C
Storage Temperature		-40~+70°C
Thermal Dissipation		Nature
Life Time:		50000Hours,at TC max
Relative Humidity		5~95%
Isolation Voltage:		In/Out 3000VAC
Vibration		5-55Hz/2g,30 Mimutes
