ODM Scenic Spot ESD Tester Waist Height Turnstile
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen city, Guangdong province, China |
|---|---|
| Productivity: | 3000 pcs |
| Supply Ability: | 500pcs/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ROHS,FCC |
| HS Code: | 8608000900 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

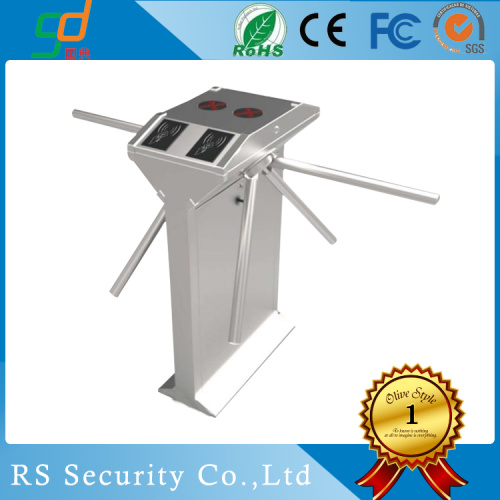

Access Control Devices Tripod Turnstile Gates Series
RS Security is manufacturing and supplying a qualitative array of Tripod Turnstile. The Tripod Turnstile Series is demanded at office, bank, airport, malls stadium. Moreover, this range is gives a dependable entrance solution to control pedestrian movement. Tripod Turnstile has integration with card reader, bio metric reader & fire system.
Tripod turnstile Technical Specifications:
| Power voltage | AC220±10%,50/60Hz |
| Drive voltage | DC12V+AC18V |
| Operation condition | -25°C~+75°C |
| Relative humidity | None-condensation |
| Input signal | 12V DC level or 12V pulse>100ms |
| Working Current | less than 2000mA |
| Length of the bar | 510mm |
| Service life | ≥5 million |
| Open angle | 120° |
| Pass speed | less than 30 person/minutes |
| Structure | Frame or 304 Stainless steel cover |
| Open direction | Single and Double(optional) |
| Work environment | Outdoor and indoor |
| IP Degree | IP54 |
| Width of passage | ≤550mm |
Functions and Features:
1. Made of stainless steel SUS304, which is rustproof, durable, and can resist external destroy.
2. The gear drive makes the system more exact and reliable with low noise and no mechanical shock.
3. Self-checking function makes the lock automatic recovery.
4. More work mode for choice:
-Normally closed mode
Under normal circumstances at usual time, the channel is turned off, after a pedestrian with the valid card is read, the channel gate is opened and the passage can get through smoothly.
-Free passage mode
During the peak, the passage can freely access without reading cards.
-Bi-directional flow limit
Cards are required to be read at both entrance and exit before they can access
-One-way follow limit mode
While pedestrian with the card is read in one direction, the pedestrian is prohibited in the other direction;
While pedestrian with the card is read in one direction, the pedestrian will be past freely in the
Other direction;
While pedestrian are passing freely in one direction, the other direction is prohibited.
1. Remotely operation makes the fire protection.
2. System integrated with RFID, Bar code, Biometric and others
3. LED Indicating Lamp
4. Check function of the pedestrian number
Turnstile factory views:
Turnstile gate application:
Tripod turnstile package:
