Automatic Turnstiles Half Height Tripod Barrier Gate
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen city, Guangdong province, China |
|---|---|
| Productivity: | 3000 pcs |
| Supply Ability: | 500pcs/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ROHS,FCC |
| HS Code: | 8608000900 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

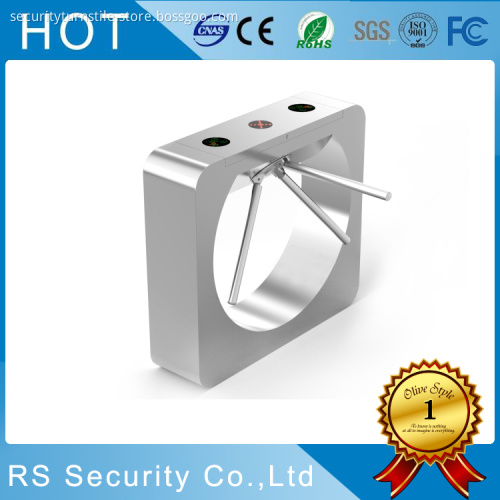

Automatic Turnstiles Half Height Tripod Barrier Gate
The Tripod Turnstile Door series are intelligent passage management equipment researched, developed and produced by our company.This security equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
Tripod turnstile Technical Parameters:
|
1 |
Power |
AC220C±10V,50/60HZ; |
|
2 |
Machine core |
Full Automatic/semi-automatic |
|
3 |
Operating Temperature |
-25℃-75℃ |
|
4 |
Relative Humidity |
≤95%, No Condensation |
|
5 |
Passage Width |
≤600mm |
|
6 |
Passing Speed |
30-45persons/min |
|
7 |
Motor |
DC Brushless motor, 30W/24V |
|
8 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
|
9 |
Communication Connection |
RS485 Communication |
|
10 |
Material |
Stainless steel 304,thickness is no less than 1.3mm |
|
11 |
Communication Distance |
1200M
|
|
12 |
Running life |
5--8 Million(Continuous Opening and Closing Operation) |
|
13 |
Protect level |
IP54 |
|
14 |
Size |
1200*280*985mm(Bridge house); custom made as demand |
|
15 |
Colour |
SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
|
16 |
Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise`s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
Security tripod turnstile Functions and Features:
1.Auto replacement function, reposition after person pass by
2.Anti tail function auto-lock once turn 90° .
3.Arms auto drop when power off , insure unblocked when accident
4.Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work
5.Diverse control mode optional, changeable due to varying, convenient for your manage
6.Auto alert error function, comfort for user maintain and operate
7.Manual button or remote control ,Bi-directional passage
8.Open signal with memory or with out set function
9.Red and green light to show pass or stop, leisure to exit and entrance
