RFID Card Reader Tripod Turnstile Door
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen city, Guangdong province, China |
|---|---|
| Productivity: | 3000 pcs |
| Supply Ability: | 500pcs/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ROHS,FCC |
| HS Code: | 8608000900 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

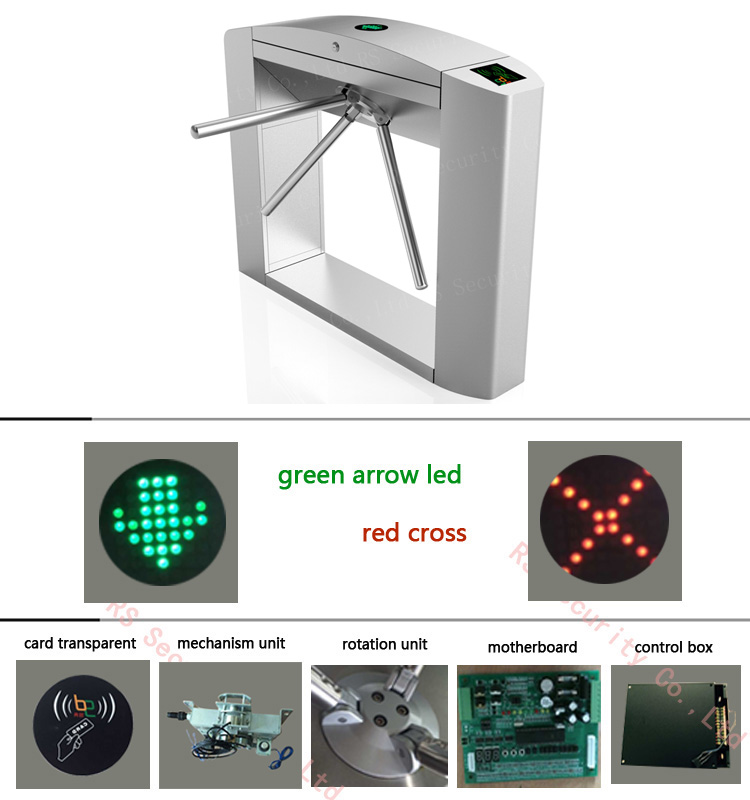

RFID Card Reader Tripod Turnstile Door
Turnstile Gate Description:
The Tripod Turnstile Door series are intelligent passage management equipment researched, developed and produced by our company.This security equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
Turnstile Gate Technical Specifications:
| 1 | Power voltage | AC220V±10V, 50Hz |
| 2 | Operation temperature | -20°C ~70°C |
| 3 | Relative humidity | less than 95%, not condensed. |
| 4 | Max. Passage width | ≤600mm |
| 5 | Passing speed | ≤40 person/m |
| 6 | Motor | 24V |
| 7 | Communication Distance | 1200M |
| 8 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
| 9 | Communication Connection | RS485 Communication |
| 10 | Material | SS304,thickness(1.5mm |
| 11 | Working environment | indoor and outdoor |
| 12 | Arm Opening/Closing Time | 0.3s |
| 13 | Size | 1200*280*980(mm |
| 14 | Failure-free operation | 5 million/time |
| 15 | Weight | 50 kg |
Turnstile Gate Functions and Features:
A.Compatible for IC, ID, magentic card, barcode card and ESD and so on.
B.Smooth running for arm, low noise.
C.Arm drops down automatically when emergencies happen. arm goes up automatically when power on.
D.Control panel has counting function, LED display ( optional).
E.Control panel has memory function.
F.With standard input and output interface, best choice for system integrator.
Semi-auto tripod turnstile
A.Compatible for IC, ID, magentic card, barcode card and ESD and so on.
B.Smooth running for arm, low noise
C.Arm drops down automatically when emergencies happen. arm goes up by manual operation when power on.
D.Control panel has counting function, LED display ( optional)
E.Control panel has memory function
F.With standard input and output interface, best choice for system integrator
Manual operation tripod turnstile
A.Specific system of positioning and resetting: the unit can make any arm in the horizontal level.
B.Unit is pure mechanical product without electric control system, and is also simply in configuration and high in reliability.
C.Zero maitenance, suitable for one-direction flow control
