RFID Card Reader Tripod Turnstile Manual

RFID Card Reader Tripod Turnstile for School

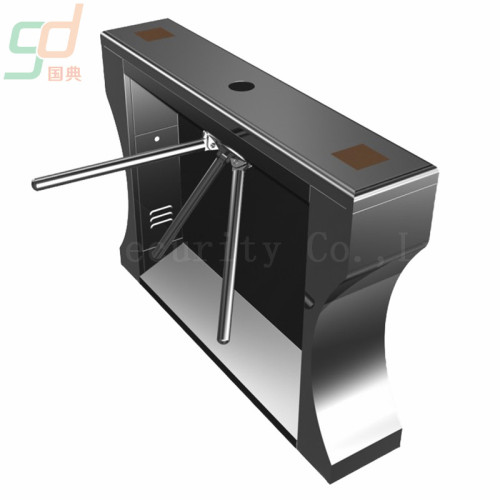

RFID Tripod Turnstile(also called Waist Height Turnstile,Tripod Gate,Tripod Barrier,Tripod Door) full body made of 1.5 thickness(standard)304 or 316 stainless steel steel,consist of three bars,mechanism,electric circuit,electromagnetic,hydraulic damper,led lamp and so on.It is economic pedestrian access control.

  APPLICATION

Electromechanical turnstiles and gates are used as a component of attendance and access systems to accommodate controlled person movement. Installed in factory gatehouses, premises entrances or sporting facilities (pools, stadiums, etc.), turnstiles either provide and direct the passage of each individual, or serve as a security elements to deny access.
The function depends on configuration. At the same time, each person`s passage is logged using the ID media, providing for collection of complete attendance data.

  1.5 thickness 304 stainless Steel& AC220/110V 50/60Hz Tripod Turnstile Gate

  Tripod Turnstile Control Box Structure and  Parts

Control Box -Standard fire interface with standard fire interface,arm can drop sown for evacuation even power is not cut off when fire alarm triggered. -Fuse The fuse is also called a current fuse, which is defined by the IEC127 standard as a "fuse-link". It mainly acts as an overload protection. -transformer power input 220/110V+10%V,50/60+10%HZ -power switch input AC220/110+10%v,output DC 24V brushed -group pole connection neutral wire -main board the hard-core of tripod turnstile

  Hydraulic damper Tripod Barrier Controller

Power Input: DC24V power supply input port. Limit Shift Switch -It will know any person access. If there is no this signal, controller will keep waiting (access time).. Anti-clockwise and clockwise access Input -After receive switch signal input, it will control clockwise output port or anti-clockwise output port. Barrier feedback Input -The tripod shift one time  120°  , it will output a low level signal. It is used in ticket system. Anti-clockwise Output Port -Output DC 24V. Clockwise Output Port -Output DC 24V. Barrier-up Control -This port output 24V. Barrier will up by it control electromagnet. Direction Indicator -It displays access direction.

  Tripod Turnstile main board Port Instruction

GND Power GND 24V 24V Power Input ZERO Limit Shift Signal Wire VCC Limit Shift Switch Power Wire GND Limit Shift Switch GND OP_L Anti-clockwise Open Signal COM COM port 12V OP_R Clockwise Open Signal	12V 12V Power Output PS -Barrier feedback Signal  +24V 24V Power output M0 Anti-clockwise Output Port M1 Clockwise Output Port R Direction indicator Light Data 1 G Direction indicator Light Data 2

  Tripod Turnstile Mechanism struture

  Tripod Turnstile Connection

  Tripod Turnstile Functions

  The Basic Function

1. With clear indication function, it can connect with direction light board to show access direction.

2. With anti-follow function: It can automatically cancel the access time after each person

accessed to avoid following.

3. With a variety of work modes to chose, it can be one-way access, two-way access, control access by main board send switch signal (it should be connected with control system, access control, fingerprint etc-). All can set up by the menu of main board.

4. With auto reset function: After receiving opening signal, the system will automatically cancel the access if the passenger could not access in the given time. And the limited access time can be set in the menu of main board.

5. With the function of falling-bar when power off, It can satisfy the user's special request and fire safe request.

6. With both directional electro-magnet and position-limited switch working style (for high speed core of turnstiles), it can satisfy the different customer's requirements.

  Function Instruction

1. There are six keypads on the main board. S4 and S5 is left open and right open separately. S1 is used to enter or exit from the menu. S2 and S3 is upturning and down, it is used for menu setup.

2. The LED of main board is 3 digits display from left to right side. Normal mode is 000.

3. After enter menu: To press menu button, it will display [P00". It is enter and exit button. S2 and S3 button can setup function number, there are 5 modes to setup.

P00: Enter and Exit the menu

1), Turnstile type P01: 1-0: Electro-magnet is active when powered on. (It fit for the tripod turnstile). 1-1, Direction electro-magnet will be failure when power off. (It fit for high speed turnstile). Default is 0.

2), Initialization P02: 2- 0 is NO, 2-1 is Initialization

3), Access Time P03: 306 is the maximum access time(s), the default is 6s.

4),Working Mode P04 4- 0: anti-clockwise access and clockwise access need read card, 4-1: anti-clockwise access by card and clockwise access without card, 4-2: clockwise access by card and anti-clockwise access without card. Default is 0.

5), Testing Function P05: 5-0 is exit test, 5-1 is starts to test. Default is 0.

6), Anti-clockwise and clearP06, 6-0 is count or not count(0 is not count,1 is count), 6=1 is check the access statistics, 6=2 is clear. Default is not count.

7), Clockwise access count and clearP07: 7=0 is count or not count (0 is not count,1 is count), 6=1 is check the access statistics, 6=2 is clear. Default is not count.

8) Valid Access Record Function P08: 8-0 is no record, 8-1 is anti-clockwise access record, 8-2 is clockwise access record, 8-3 is anti-clockwise and clockwise record. Default is no record function.

9), Access Setup P09: 9-0 anti-clockwise and clockwise access, 9-1 is anti-clockwise access only, 9-2 is clockwise access only, 9-3 is clockwise access and anti-clockwise access are forbidden.
