Electric Stainless Steel Automatic Hydraulic Road Bollards
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen city, Guangdong province, China |
|---|---|
| Productivity: | 3000 pcs |
| Supply Ability: | 500pcs/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ROHS,FCC |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

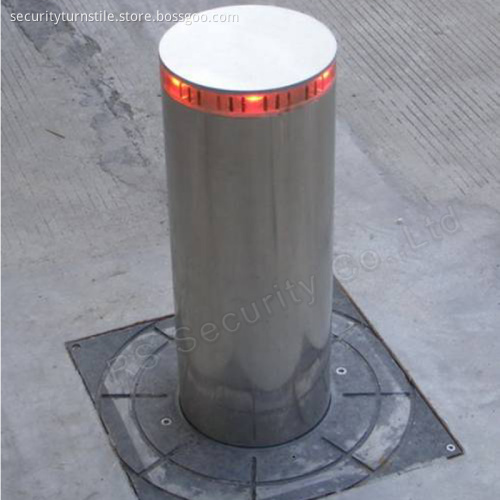

Electric Stainless Steel Automatic Hydraulic Road Bollards
Traffic Bollard Description:
In open position, Traffic Bollard height is 50 cm in standard and if needed it can be extended up to 90 cm with custom production. Open-close time is set as 3-4 seconds in standard in order not to prevent traffic flaw. With custom production, this time can be decreased to 1 second if needed. In case of power cut, manual opening is possible with the manual pump included as an option. In the hydraulic bollard set, there is 1 piece bollard, 1 piece hydraulic control cabinet, 1 piece remote control button. Traffic light, flashing light and their poles are optional accesories.
Related Product:Durable Traffic Bollard,Removable Traffic Bollard,Traffic Bollards,Elastic Plastic Traffic Bollards
Traffic Bollard Technician data:
| 1 | control system | Hydraulic control system |
| 2 | Pressure-bearing | ±100 ton vehichel |
| 3 | Anti-collision grade | K4 |
| 4 | Protection grade | IP68(waterproof.dampproof.dampproof). |
| 5 | Power supply | 380V |
| 6 | Power(w) | 2.7KW |
| 7 | rise time | 5~10S(adjustable) |
| 8 | Drop time | 5~10S(adjustable) |
| 9 | Work temperature | -25℃~75℃ |
| 10 | Storage condition | -10℃~75℃. |
| 11 | Color | stainless steel(default),multiple colors reflection film/led indication (optional) |
| 12 | Material | 304 stainless steel |

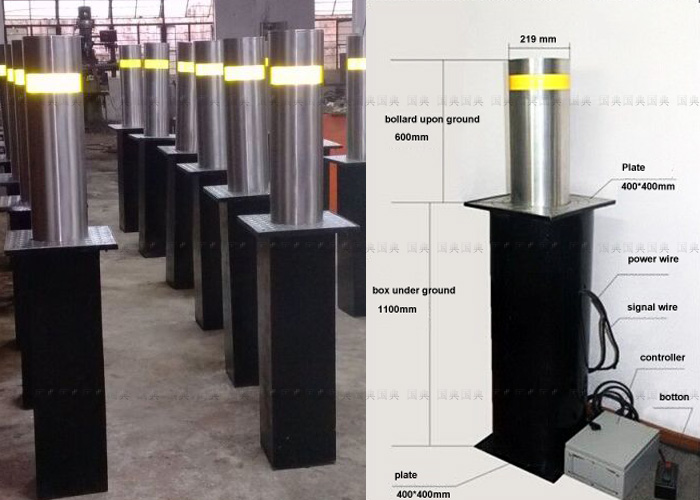

| 13 | Bollard size(mm) | L400×W400×H910, rise/drop height: 600mm,panel size:600x600mm. |
| 14 | Bollard diameter(mm) | 168\219(default)\275mm;thickness: 6mm(8-10-12mm optional). |
| 15 | Control ways ( optional) | remote control, manual operation, rfid card, bluetooth card, |
| 16 | Weight | 110KG |
Traffic Bollard Function:
1,No need lay underground hydraulic pipeline. Easy installation. Low construction cost
2,Because of Have no hydraulic pipeline. It only need inspect independent bollard during maintenance.
it is easy to take out the control box from earth .Easy repair and maintenance
System takes of micro motor and a integration ports connect gear pump and oil box . Then use a all in
one hydraulic cylinder to built a complete micro hydraulic .use structure parts to install this system into
roadblock inner.In this way complete electronic energy >mechanical energy>hydraulic energy conversation process .totally reach micro .electronic.;liquidize integration
Traffic Bollard Features :
(1) Emergency release ;
(2) There is no limited on distance between Independent bollard and control system
(3)Can make sure more than one bollard synchronous raise and fall
(4)Can takes of short/remote control and short swing card or long range radio swing card control .
(5)Can connect with PC reach sequencing control.Suitable for high frequency high safety requirement
place
