Wide Channel Access Security Swing Gate Turnstyle

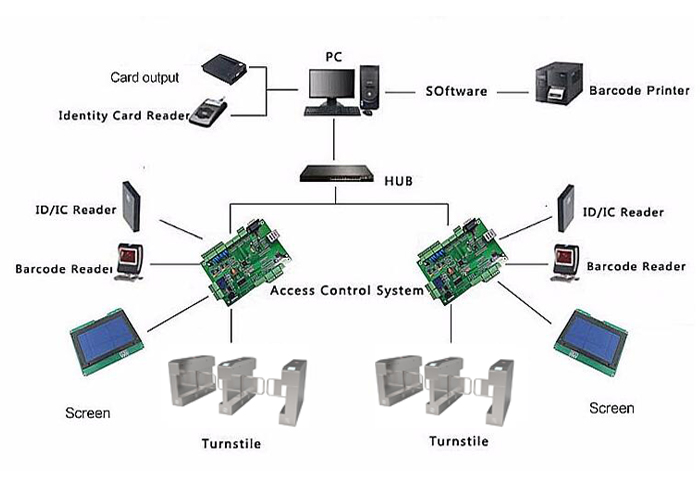

The swing barrier gate uses the authorized mode to control the entry and exit of the pedestrian. The passenger puts the authorized card close to the card reader, the built-in card reader will release information to the control system, while it gets the authorization, then starts door module unit, the door on both sides of swing barrier gate will open to make the pedestrian pass, accompanying with the real-time infrared detection in the process. Our swing barrier gate is a discourage-type lane, which supports unidirectional or bidirectional access. With up to 24 pairs of IR sensors and the most advanced brushless DC servo motor, the swing barrier gate ensures valid one by one passage flow, high-efficient anti-tailgating, long service life and almost no noise, make perfect authorized access control.
Technical Specification:
| 1 | Product Name | Automatic Swing Barrier Gates |
| 2 | Environmental Temperature | -20℃~ +70℃ |
| 3 | Operating Humidity | ≤95% |
| 4 | Operating voltage | 110V/220V AC 50Hz/60Hz |
| 5 | Operating power | 80 W |
| 6 | Active distance | 3 ~ 8 m |
| 7 | Waterproof class | IP54 |
| 8 | Interface | RS 485 |
| 9 | Passage width | 600-900 mm |
| 10 | Indicator light | LED |
| 11 | Material | 304 stainless steel |
| 12 | Thickness | 1.5 mm |
| 13 | Starting-up time | 3 s |
| 14 | Switching time | 1 s |
| 15 | System boot time | 3 s |
| 16 | Transit speed | 30-45 people/minute |
| 17 | Working life | 5 million |
| 18 | Dimension | 380*280*980mm |
| 19 | Direction | Unidirectional ,Bidirectional (optional) |
Function:
1. Waterproof, sunscreen, anti-temperature, anti-cold.
2. Access Prompt function:Red and green light prompt the passing information.
3. Can set a one-way or two-way control
4. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
5. Small button into the main control panel ,can be set state of equipment.
6. Anti-pinch, anti bumps function
7. Scour protection function ,when the gate signal is not received, arms keep closed
8. With automatic reset function,if does not pass in the set time,turnstile will get back
9. Normally open or closed can be freely adjusted
10. can be used with a variety of reading devices, work when it receive relay switch signal
11. Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically
