Bidirectional Access Control Swing Gate Automatic Turnstile
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen city, Guangdong province, China |
|---|---|
| Productivity: | 3000 pcs |
| Supply Ability: | 500pcs/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ROHS,FCC |
| HS Code: | 8608000900 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

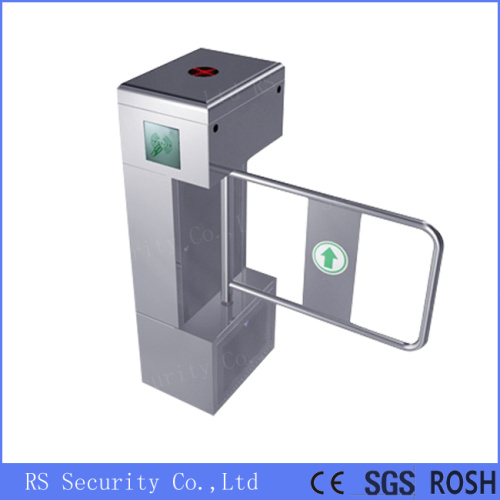

Bidirectional Access Control Swing Gate Automatic Turnstile
The supermarket swing turnstile integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and management.
The supermarket swing gate turnstile is a high-tech product aimed at the pedestrian access intelligent management, which is a upgraded product based on intelligent tri-turnstile, swing barrier, average wing barrier. This product is well-processed and newly-designed with full functions, high grade, and mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway, port, club etc.
Technical Specification:
| Product Name | Security Access Gate Turnstile |
| Environmental Temperature | -25℃~ +75℃ |
| Operating Humidity | ≤95% |
| Operating voltage | AC 110V/220V 50Hz/60Hz |
| Operating power | 30 W |
| Active distance | 3 ~ 8 m |
| Waterproof class | IP54 |
| COM ports | RS485 |
| Passage width | 600 mm |
| Indicator light | LED |
| Material | 304 stainless steel |
| Emergency | Automatic arm open when power off |
| Thickness | 1.5/2 mm |
| Starting-up time | 3 s |
| Switching time | 1 s |
| System boot time | 3 s |
| Transit speed | 45 people/minute |
| Working life | 5 million |
| Dimension | 380*280*990 mm (L*W*H) |
| Direction | Unidirectional ,Bidirectional (optional) |
Function:
1. Waterproof, sunscreen, anti-temperature, anti-cold.
2. Access Prompt function:Red and green light prompt the passing information.
3. Can set a one-way or two-way control
4. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
5. Small button into the main control panel ,can be set state of equipment.
6. Anti-pinch, anti bumps function
7. Scour protection function ,when the gate signal is not received, arms keep closed
8. With automatic reset function,if does not pass in the set time,turnstile will get back
9. Normally open or closed can be freely adjusted
10. can be used with a variety of reading devices, work when it receive relay switch signal
11. Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically
Security turnstile factory views:
Trusntile gate Application:
Access control and attendance management channels: residential estates, hotels, institutions, libraries, buildings, office buildings, prisons, public institutions, sites, factories, etc.
Ticketing and charging management channels: dining halls, parks, scenic spots, station terminals, movie theaters, entertainment clubs, exhibition halls, gymnasiums, customs, subways, airports, etc.
Ttripod turnstile package:
