Pedestrian Entrance Swing Gate Supermarket Turnstile
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen city, Guangdong province, China |
|---|---|
| Productivity: | 3000 pcs |
| Supply Ability: | 500pcs/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE,ROHS,FCC |
| HS Code: | 8608000900 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Pedestrian Entrance Swing Gate Supermarket Turnstile
Swing Gate series are intelligent passage management equipment researched, developed and produced by our company. The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
Technical Specification:
| 1 | Product Name | Automatic Swing Barrier Gates |
| 2 | Environmental Temperature | -20℃~ +70℃ |
| 3 | Operating Humidity | ≤95% |
| 4 | Operating voltage | 110V/220V AC 50Hz/60Hz |
| 5 | Operating power | 80 W |
| 6 | Active distance | 3 ~ 8 m |
| 7 | Waterproof class | IP54 |
| 8 | Interface | RS 485 |
| 9 | Passage width | 600-830 mm |
| 10 | Indicator light | LED |
| 11 | Material | 304 stainless steel |
| 12 | Thickness | 1.5 mm |
| 13 | Starting-up time | 3 s |
| 14 | Switching time | 1 s |
| 15 | System boot time | 3 s |
| 16 | Transit speed | 30-45 people/minute |
| 17 | Working life | 5 million |
| 18 | Dimension | 168*980mm |
| 19 | Direction | Unidirectional ,Bidirectional (optional) |
Function:
1. Waterproof, sunscreen, anti-temperature, anti-cold.
2. Access Prompt function:Red and green light prompt the passing information.
3. Can set a one-way or two-way control
4. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
5. Small button into the main control panel ,can be set state of equipment.
6. Anti-pinch, anti bumps function
7. Scour protection function ,when the gate signal is not received, arms keep closed
8. With automatic reset function,if does not pass in the set time,turnstile will get back
9. Normally open or closed can be freely adjusted
10. can be used with a variety of reading devices, work when it receive relay switch signal
11. Fire emergency function,after power,arms will be automaticlly opened.When on power,will be closed automatically
.................................................................Turnstiles Workshop............................................................

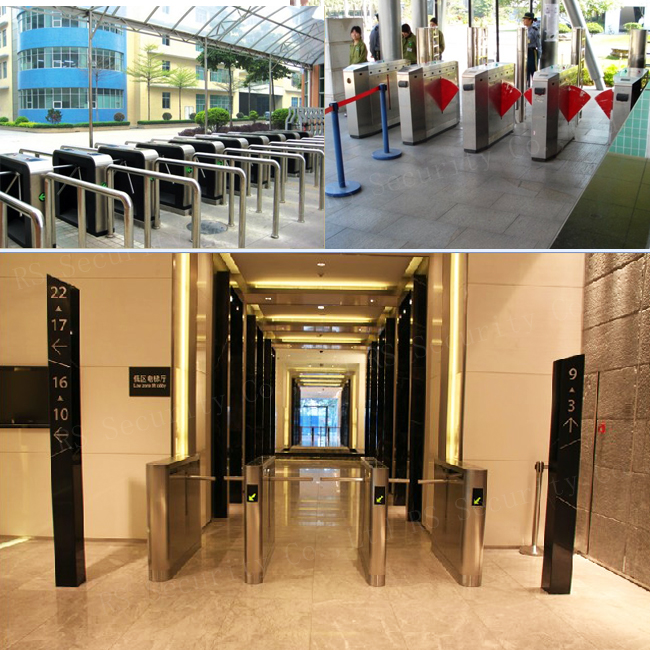

.................................................................Turnstiles application............................................................
