ODM Repository Double Lane Flap Barrier Software

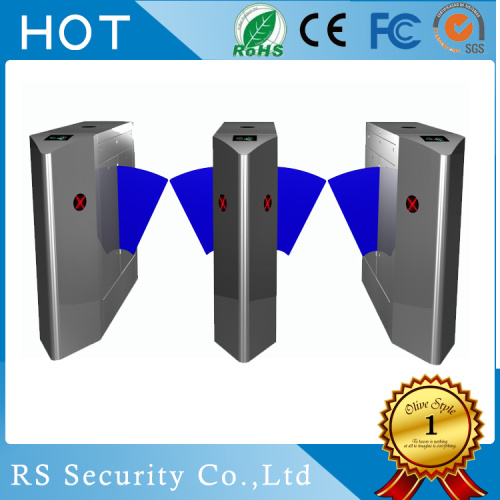

CE Counter Optical Turnstile Flap Speed Gate

       The flap gate is usually used in bank lobby, office building, fitness club, school, it prevents unauthorized people to enter the restricted areas,
*The speed gate barriers are designed to work in a normally closed mode and retract inside the pedestal after a valid card has been presented to allow the authorized user to pass. The fast moving close behind the authorized person to deter tailgaters.


Function and Feature

1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) DC Brushless Motor, Maintenance Free
3) On-line or off –line mode(optional)
4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5) With direction indication, guiding passenger to entry and exit.
6) Self automatic locking to prevent forcedly passing without the card
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8) Light and sound alarm indication function, preventing illegal entry or irregular passing
9) Powerful on-line intelligent control mode, facilitating you:
A)To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
B)To set up operation mode for passage entry and exit.
C)To read card with multiple times, the special function meeting the application requirements of a particular site.
D)To set up the card reading with or without memory.
E)To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
F)  Setting function humanized for reset of over time passing.
10)The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
12) The processing mode in emergency or in special conditions.
13) Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.
14) Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
15) Strong system expending capability, available to add new product at any time
16) Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection
17) Resetting automatically. After reading card, if the passer didn`t pass at set time, the system will cancel pass permission automatically, the administrator can set the passing time by himself.

Technical specification

Material	304 stainless steel	Input voltage	110V/220V ±10%,50/60Hz
Size	1200x300x980mm	Arm width	265m
Net weight	About 70kg/unit	Arm material	Acrylic or soft arm
Motor	24V DC brush	Top Cover	Acrylic or stainless steel
Communication interface	RS485	Sensor beams	5 pairs for 1 complete lane
Transit speed	30-40 people/minute	MTBF	5000,000 times
Close and open time	0.6S	Input interface	Relay signal, 12V level signal,
Clear passage width	600mm ( standard) , 900mm (optional)	Work environment	Indoor and outdoor (shelter)
Number of led lamp	5 pcs	Model	RS 488

Flap gate size:





Flap barrier aplication:







Turnstile factory views:







Flap turnstile package:
