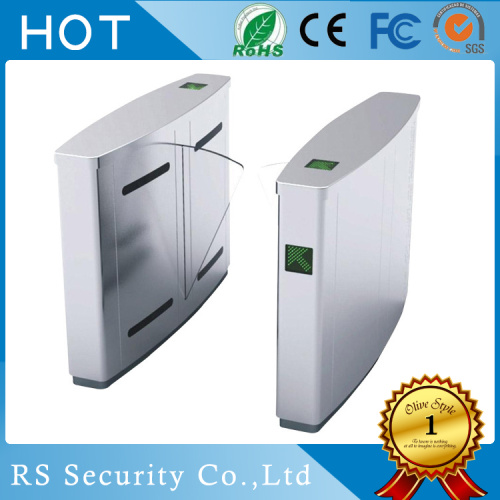

ESD Wheelchair High Bright Flap Barrier Door Use

Electric Indoor Wing Flap Barrier Gate Turnstile

       The flap gate is usually used in bank lobby, office building, fitness club, school, it prevents unauthorized people to enter the restricted areas,
*The speed gate barriers are designed to work in a normally closed mode and retract inside the pedestal after a valid card has been presented to allow the authorized user to pass. The fast moving close behind the authorized person to deter tailgaters.


Function and Feature

1. A compact electric and mechanical design with unique drive which ensure product durability and silent operation, and its self-lock mechanism can also well protect the access control security.
2.Optical turnstile flap barrier gate have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
3.Optical turnstile flap barrier gate have input interface that are available for dry contact and switch signal connections. So that customers can integrate the flap barrier with different system, like card reader, ticket system, token system etc.
4.Optical turnstile flap barrier gate have auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable. The press button 1 and button 2 can adjust the delay closing time.
5.Optical turnstile flap barrier gate can be integrated with fire control device, which allow the release on emergency for security consideration.
6. Optical turnstile flap barrier gate have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.

Technical specification

Material	304 stainless steel	Input voltage	110V/220V ±10%,50/60Hz
Size	1200x300x980mm	Arm width	265m
Net weight	About 70kg/unit	Arm material	Acrylic or soft arm
Motor	24V DC brush	Top Cover	Acrylic or stainless steel
Communication interface	RS485	Sensor beams	5 pairs for 1 complete lane
Transit speed	30-40 people/minute	MTBF	5000,000 times
Close and open time	0.6S	Input interface	Relay signal, 12V level signal,
Clear passage width	600mm ( standard) , 900mm (optional)	Work environment	Indoor and outdoor (shelter)
Number of led lamp	5 pcs	Model	RS 388



 Advantages:



1. Provided the function of automatical card collection, working efficiency can be improved.

2. Available forms: Readable magnetic card, barcode, IC card.

3. Provided the function of self-diagnosis and alarm prompt, convenient for users to maintain and to use.

4. With automatic reset function: after reading the card effectively, if the user does not pass in the specified time period, the system will automatically cancel the user's access rights.

5. Anti-Intrusion function, the boom will lock automatically without receiving the signal of opening.

6. After cutting the electricity the facility, the arms will fall down automatically, and formed a safety passage.

7. Each time pass only for one person. Avoided passing through by following the former person.

8. The control board equipped with functions of counting and memory.

9. High compatibility. Compatible for the facilities and subassemblies of other brands.

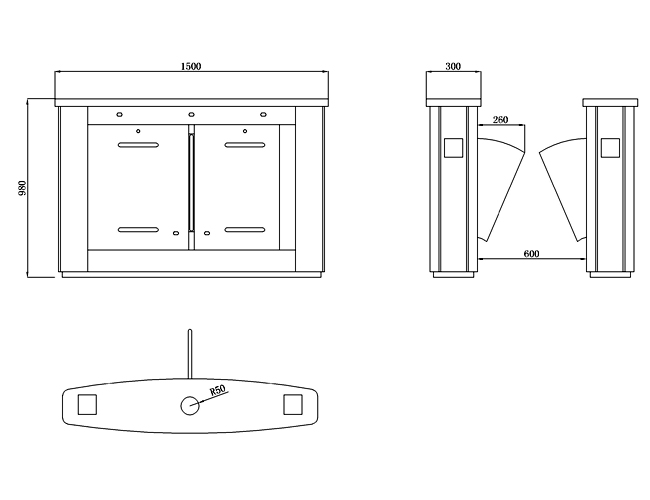

Flap gate size:



Flap barrier aplication:







Turnstile factory views:



Flap turnstile package:
