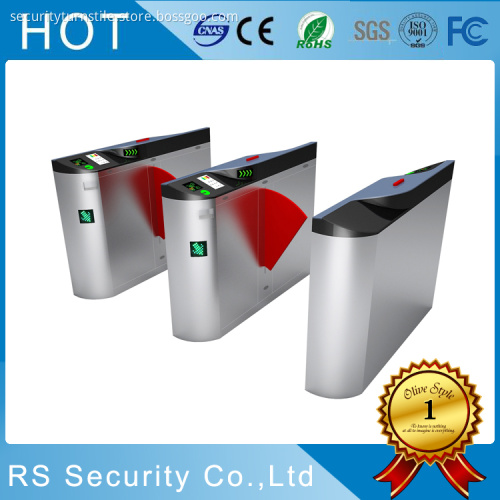

Airport Data Entry Flap Barrier Gate Turnstile

Airport Data Entry Flap Barrier Gate Turnstile

      The flap gate optical turnstile system can support cardback devices : IC/ID card reader, barcode scanner, ID reader and biometric identification etc, easy to connect with access control system, elevator system and intercom system.
The brushless DC servo technology and the professional-grade speed reducer are used to make service life reach up to 5 million cycles and almost no noise. The infrared sensor is used to achieve anti-tailgating and anti-pinch, the minimal detection distance is up to 10 cm, high security.


Function and Feature:

1.Elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.
2.Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering    complete entrance control solutions.
3.Malfunction self-detection, which is easy for operation and maintenance.
4.Operational mode can be set up through the built-in menu on the control panel.
5.Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
6.Anti-collision function, the flaps will stay close if not receiving the open signal.
7.Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.
8.Flaps reset to close position when power resume.
9.Flaps reset to lock position when access time expire.
10.Prevents Invalid/Tailgate/Wrong direction access.
11.LED Array indication for access granted/denied.
12.Compatible with diverse access control devices.
13.Pedestrian flow directions can be single or double directions.
14.RS485 socket is available to connect the computer.

Technical specification
