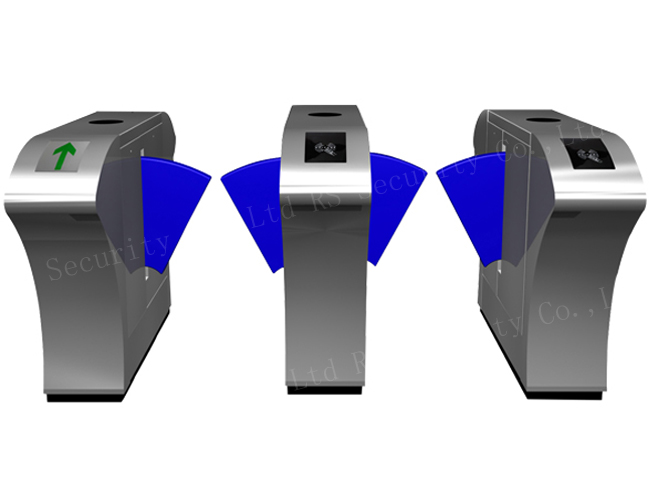

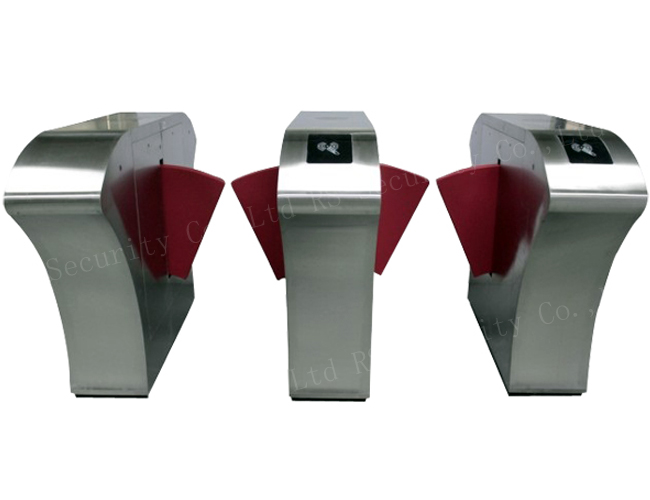

Waist High Pedestrian Access Control Flap Turnstiles

Waist High Pedestrian Access Control Flap Turnstiles

       Intelligentized flap barrier is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors.

       Flap barrier consists of cabinet,reader module,main control module,motor&driver module,infrared photocell,alarm device,limit switch and voice prompt device etc., can be used for the applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent flap barrier management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc.

Function and Feature :

1. a compact electro-mechanical design with unique drive and a self-lock mechanism
2. automatic detection for malfunction
3. input interface for dry contact and switch signal connection
4. adjustable auto-delay closing
5. infrared photocells for safety access
6. alarm for unauthorized access and no access against passenger flow
7. anti-reversing passing
8. auto closing when power on
9. auto open and free access when power off
10. adjustable access directions
11. emergency interface available
12. traffic light indicating passenger access

Technical specification:

1 Stainless steel housing

2 Bi-direction pass

3 Arms auto drop when power off

4 Arms auto rise up when power on and auto stop on abstacle

5 Traffic light indicator

6 RFID interface

7 Photoelectric inspection

8 Passenger counter (optional)

9 If the passenger does not pass in the valid time, the passenger will be locked up again.. the valid passing time can be set up by operator

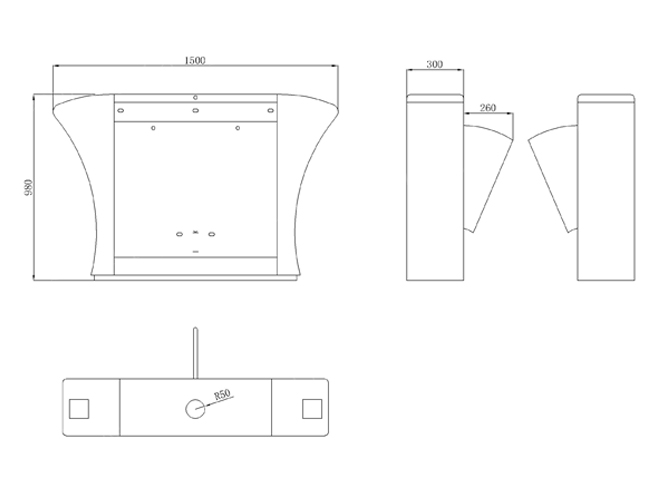

The design size:

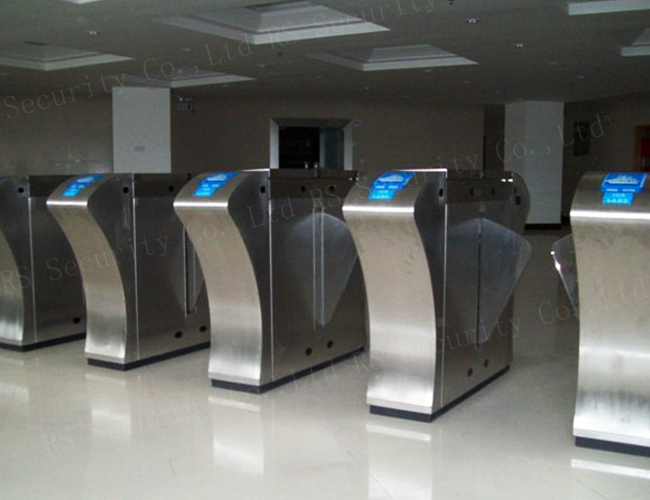

Application:

Flap barrier Package:
