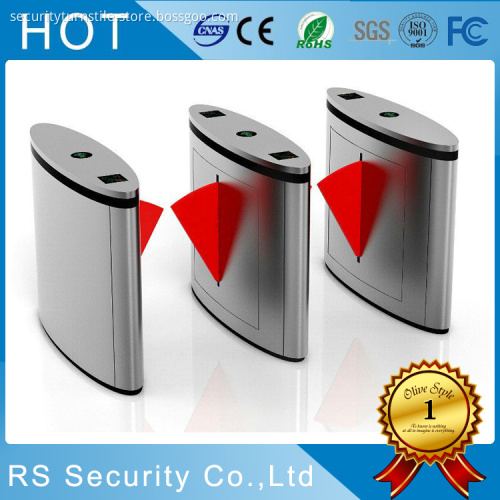

Automatic Turnstile Speed Gate Flap Barrier

Automatic Turnstile Speed Gate Flap Barrier

       Flap gate optical turnstiles provide secure bi-directional entry control, while blending beautifully with high end environments.A combination of integrated sensors and motorized barriers control access, block unauthorized entry attempts and detect [tailgating"on allowed entries. Sounds and lights alert when an unauthorized passage is
attempted.

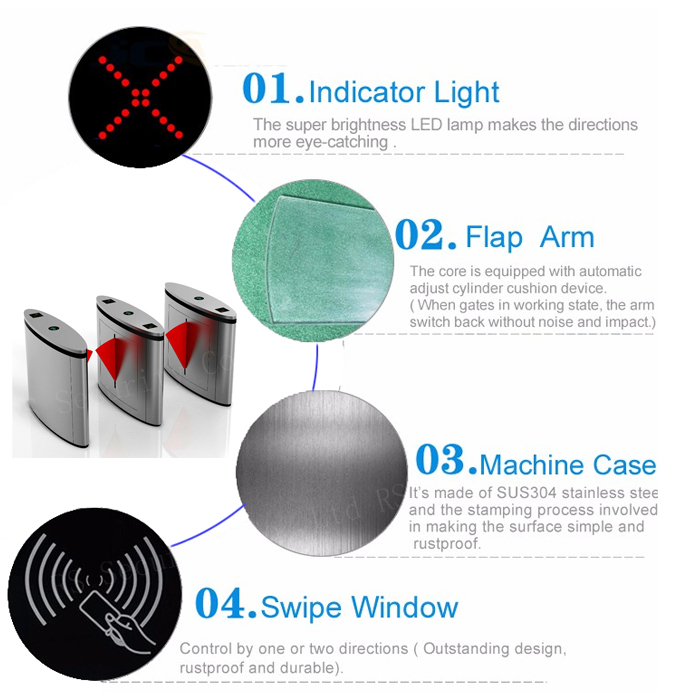

Function and Feature:

1. Provide normally open / normally close to satisfy management request.
2. Compatible with RF card readers, bar code readers, biometric readers, push button...
3.Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.
4. Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.
5. Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.
6. Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
7. (Optional) Support gate open while power failure and recover N/C mode after power on.
8.(Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
9.(Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.
10.One direction or bi-direction is optional.

Technical specification:

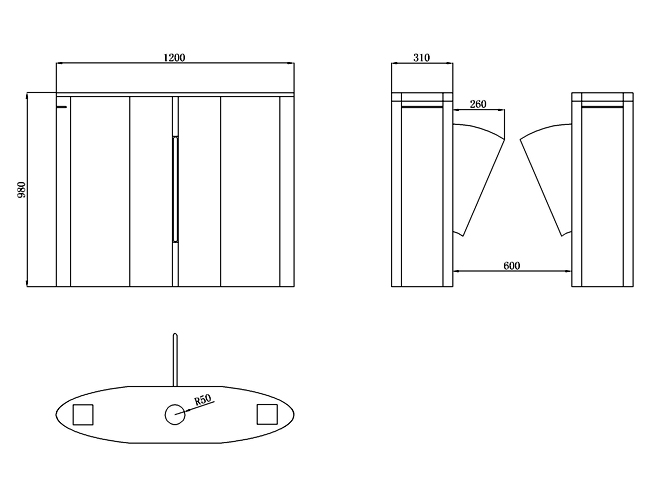

Flap gate size:

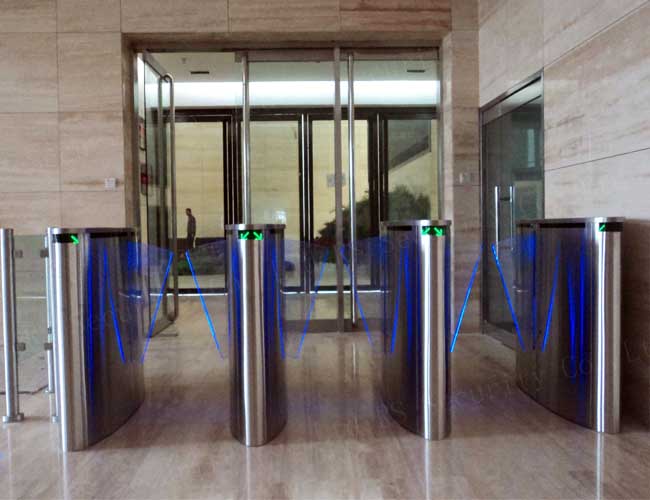

Flap barrier aplication:

Turnstile factory views:

Flap turnstile package:
